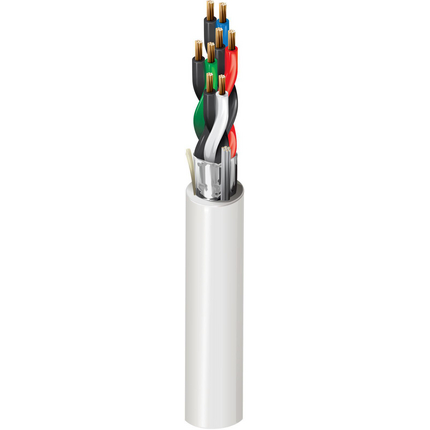

4343FE - Security & Sound, #18-4pr, BC, Shielded, LSZH, Eca

4343FE – Security & Sound, #18-4pr, BC, Shielded, LSZH, Eca

Call for Price

Compare
SKU: 4343FE Categories: , , ,

Description

Product Overview

Suitable Applications: Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls, Noisy Environment

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
18 7×26 BC – Bare Copper 1.22 mm 4
Conductor Count: 8
Total Number of Pairs: 4
Insulation
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
PE – Polyethylene 1.5 mm 0.05 mm 0.2 mm
Color Chart
Number Color
Pair 1 Black & Red
Pair 2 Black & White
Pair 3 Black & Green
Pair 4 Black & Blue
Outer Shield
Type Material Material Trade Name Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% 9 µm TC – Tinned Copper AWG24/7
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.50 mm 0.55 mm Yes
Table Notes: Ripcord provided under sheath

Construction and Dimensions

Cabling
Description
4 pairs twisted

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
21.3 Ohm/km 21.9 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
125 pF/m 224 pF/m
Current
Max. Recommended Current [A]
3.5 Amps per Conductor
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -20°C To +70°C
Storage Temperature Range: -30°C to +70°C
Operating Temperature Range: -20°C To +70°C

Mechanical Characteristics

Max. Pull Tension: 320 N
Min. Bend Radius During Installation: 75 mm
Min Setting Radius: 38 mm

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Eca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
4343FE.00500 Gray Reel 500 m 8719605127228
4343FE.K0500 Gray Reel 500 m 8719605129284

History

Update and Revision: Revision Number: 0.55 Revision Date: 12-22-2023
