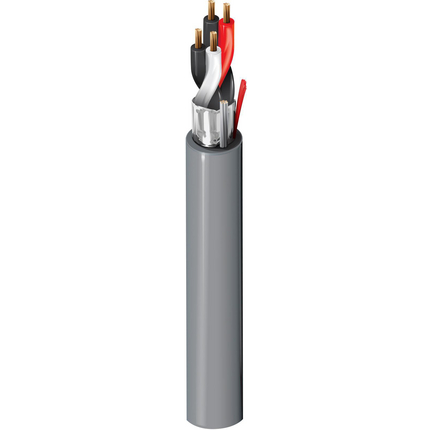

Product Overview
| Suitable Applications: |
Intercom/PA Systems, Sound/Audio Systems,
Control Systems |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Pairs |
| 18 |
7×26 |
BC – Bare Copper |
1.22 mm |
2 |
| Material |
Nominal Diameter |
Diameter +/- Tolerance |
Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
1.72 mm |
0.05 mm |
0.26 mm |
| Type |
Material |
Material Trade Name |
Coverage [%] |
Drainwire AWG |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
100% |
AWG24/7 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
Ripcord |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) |
8.10 mm |
1.1 mm |
Yes |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
| 21.3 Ohm/km |
22.6 Ohm/km |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 125 pF/m |
224 pF/m |
Temperature Range
| Installation Temperature Range: |
-20°C To +70°C |
| Storage Temperature Range: |
-30°C to +70°C |
Mechanical Characteristics
| Min. Bend Radius During Installation: |
81 mm |
| Min Setting Radius: |
40 mm |
Standards
| CPR Euroclass: |
Cca-s1,d1,a1 |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Euroclass Cca |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: |
2.5 µS/mm |
| IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: |
4.3 |
| IEC 61034-2 – Smoke Density Min. Transmittance: |
60% |
History
| Update and Revision: |
Revision Number: 0.10 Revision Date: 12-22-2023 |
