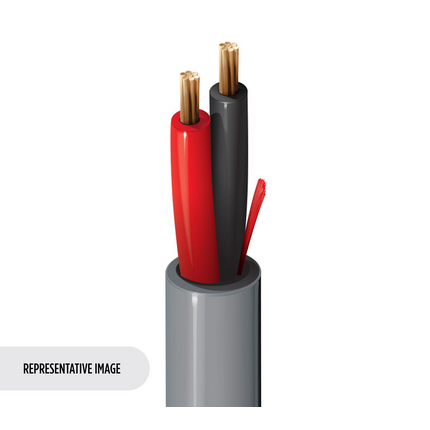

4300UE – Security & Sound, 2 Conductor 18 AWG BC, LSZH, Eca

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Intercom/PA Systems, Sound/Audio Systems, Control Systems

Construction Details

Conductor
Size Stranding Material
18 7×26 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PP – Polypropylene 0.2 mm (0.0079 in) 1.5 mm (0.059 in) Black, Red
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
LSZH – Low Smoke Zero Halogen (Flame Retardant) 0.4 mm (0.016 in) 4 mm (0.16 in) Yes
Table Notes: Ripcord provided under sheath
Overall Cable Diameter (Nominal): 4 mm (0.16 in)

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
21.3 Ohm/km (6.49 Ohm/1000ft) 100 pF/m (30 pF/ft) 5 A

Mechanical Characteristics

Temperature
Operating Installation Storage
-20°C To +70°C -20°C To +70°C -30°C To +70°C
Bend Radius
Installation Min.
40 mm (1.6 in)
Max. Pull Tension: 90 N (20 lbf)

Standards and Compliance

Environmental Suitability: Indoor – Euroclass Eca, Non-Halogenated
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
ISO/IEC Compliance: IEC 61034-2 – Smoke Density Min Transmittance = 60%
CENELEC Compliance: EN 50290-2-20
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2)
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.238 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length EAN
4300UE.00100 Gray, RAL 7032 Reel 100 m 8719605006516
4300UE.00500 Gray, RAL 7032 Reel 500 m 8719605006523
4300UE.01500 White Reel 500 m 8719605144065
4300UE.011000 White Reel 1,000 m 8719605006530
