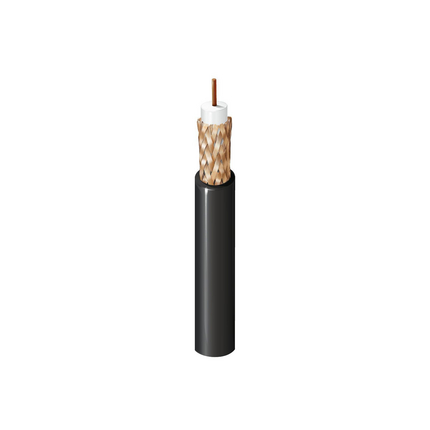

413945 – Surveillance CCTV, RG-11 #14 BC, 95% BC Braid, LSZH Jkt.

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: ANALOG VIDEO/CCTV; The cable is suitable for indoor use

Construction Details

RG Type: 11
Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 14 AWG Solid 1.6 mm BC – Bare Copper
Insulation
Material Nom. Insulation Diameter
PE – Polyethylene (Foam) 7.11 mm (0.280 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nom. Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 10.3 mm

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
1 MHz 0.56 dB/100m
10 MHz 1.15 dB/100m
50 MHz 2.95 dB/100m
100 MHz 4.26 dB/100m
200 MHz 6.23 dB/100m
400 MHz 9.5 dB/100m
700 MHz 13.4 dB/100m
900 MHz 15.7 dB/100m
1000 MHz 17 dB/100m
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
8.5 Ohm/km 4.7 Ohm/km (1.4 Ohm/1000ft) 52.8 pF/m (16.1 pF/ft) 75 Ohm 84%
Voltage
Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
Operating Storage
-30°C To +70°C -30°C To +70°C
Bend Radius
Stationary Min. Installation Min.
51.5 mm (2.03 in) 103 mm
Max. Pull Tension: 65 N (15 lbf)
Bulk Cable Weight: 124 kg/km

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
European Halogen Free Standards: IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 – Halogen Amount = Zero, IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity = 2.5 µS/mm, IEC 60754-2 – Halogen Acid Gas Amount – Min. pH = 4.3
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.215 Revision Date: 12-19-2022

Part Numbers

Variants
Item # Color Putup Type Length EAN
413945.01500 Black Reel 500 m 8719605170392
413945.00305 Gray Reel 305 m 8719605006271
413945.00500 Gray Reel 500 m 8719605006288
