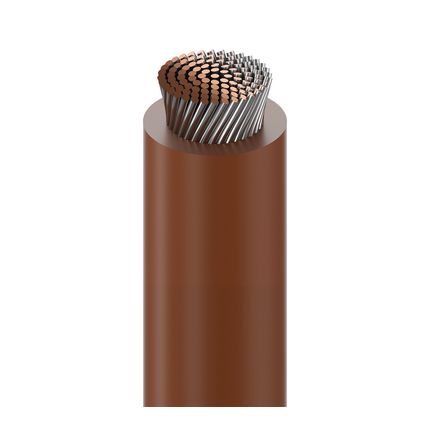

39110 - Lead Wire, #10 Str TC, PPO Ins, AWM 11028

39110 – Lead Wire, #10 Str TC, PPO Ins, AWM 11028

Call for Price

Compare
SKU: 39110 Categories: , , ,

Description

Product Overview

Suitable Applications: Electrical panel builders, Electrical/electronic manufacturers, Appliance manufacturers, Furniture, Computer manufacturers, Automotive companies and their sub-suppliers

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 10 AWG 105×30 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
PPO – Polyphenylene Oxide 0.012 in (0.30 mm) 0.134 in (3.40 mm)
Overall Cable Diameter (Nominal): 0.134 in (3.40 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
1.05 Ohm/1000ft Single conductor in free air @ 30ºC: 67 A
Voltage
UL Voltage Rating
600 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
105°C -40°C To +105°C Dry
Bend Radius
Stationary Min. Installation Min.
1.34 in (34.0 mm) 1.34 in (34.0 mm)
Max. Pull Tension: 99 lbs (45 kg)
Bulk Cable Weight: 37 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: VW-1
AWM Compliance: AWM 11028
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

Product Notes

Notes: Halogen-free.

History

Update and Revision: Revision Number: 0.492 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
39110 010100 Black Reel 100 ft 612825148128 C
39110 0101000 Black Reel 1,000 ft 612825148135 C
39110 0105000 Black Reel 5,000 ft 612825148142 C
39110 013100 Blue, Dark Reel 100 ft 612825148159 C
39110 0135000 Blue, Dark Reel 5,000 ft 612825148173 C Z
39110 001100 Brown Reel 100 ft 612825147886
39110 0011000 Brown Reel 1,000 ft 612825147893 C
39110 0015000 Brown Reel 5,000 ft 612825147909 C Z
39110 008100 Gray Reel 100 ft 612825148067 C
39110 0085000 Gray Reel 5,000 ft 612825148081 C Z
39110 0051000 Green, Dark Reel 1,000 ft 612825148012 C
39110 0055000 Green, Dark Reel 5,000 ft 612825148029 C Z
39110 189100 Green, Yellow Stripe Reel 100 ft 612825148180 C
39110 1895000 Green, Yellow Stripe Reel 5,000 ft 612825148203 C Z
39110 003100 Orange Reel 100 ft 612825147947 C
39110 0035000 Orange Reel 5,000 ft 612825147961 C Z
39110 002100 Red Reel 100 ft 612825147916 C
39110 0021000 Red Reel 1,000 ft 612825147923 C
39110 0025000 Red Reel 5,000 ft 612825147930 C
39110 007100 Violet Reel 100 ft 612825148036 C
39110 0075000 Violet Reel 5,000 ft 612825148050 C Z
39110 009100 White Reel 100 ft 612825148098 C
39110 0095000 White Reel 5,000 ft 612825148111 C Z
39110 004100 Yellow Reel 100 ft 612825147978
39110 0045000 Yellow Reel 5,000 ft 612825147992 C Z
