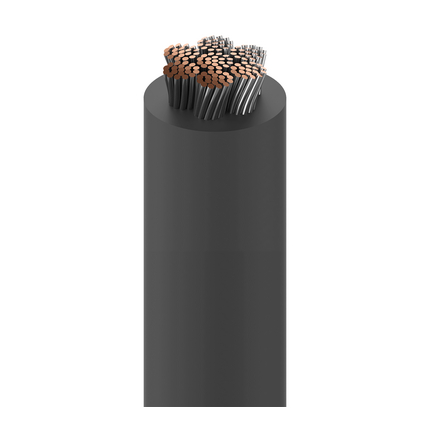

37501 - Lead Wire, #1 Str TC, EPDM Ins, AWM 3499

37501 – Lead Wire, #1 Str TC, EPDM Ins, AWM 3499

Call for Price

Compare
SKU: 37501 Categories: , , ,

Description

Product Overview

Suitable Applications: internal wiring of appliances, high voltage and high temperature applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 1 AWG 210×24 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
EPDM – Ethylene Propylene Diene Monomer 0.131 in (3.33 mm) 0.638 in (16.2 mm)
Overall Cable Diameter (Nominal): 0.638 in (16.2 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
0.143 Ohm/1000ft 297.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
7500 V (AWM 3499)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -55°C To +150°C
Bend Radius
Stationary Min. Installation Min.
6.38 in (162 mm) 6.38 in (162 mm)
Max. Pull Tension: 1085 lbs (492.1 kg)
Recommended Max Baking Cycles: 24 Hours @ 300°F (149°C) ~ 4 Hours @ 375°F (190°C)
Bulk Cable Weight: 391 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: Horizontal flame
AWM Compliance: AWM 3499
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Separator material over conductor.

History

Update and Revision: Revision Number: 0.480 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
37501 01050 Black Reel 50 ft 612825147244 C
37501 010500 Black Reel 500 ft 612825147251 C F
