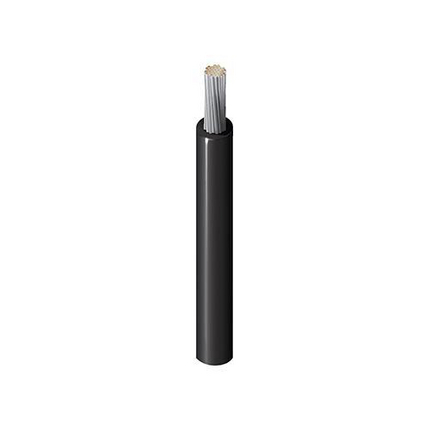

34403 - Lead Wire, #3 Str TC, CSPE Ins, AWM 3192

34403 – Lead Wire, #3 Str TC, CSPE Ins, AWM 3192

Call for Price

Compare
SKU: 34403 Categories: , , ,

Description

Product Overview

Suitable Applications: Class 130(B) motor lead systems, internal wiring of appliances, oil resistance applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 3 133×24 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
CSPE – Chlorosulphonated Polyethylene 0.066 in (1.7 mm) 0.438 in (11.1 mm)
Overall Cable Diameter (Nominal): 0.438 in (11.1 mm)

Electrical Characteristics

Voltage
UL Voltage Rating
600 V RMS (UL AWM 3192), 300 V RMS (CSA CL1052)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -30°C To +105°C
Bend Radius
Stationary Min. Installation Min.
1.76 in (44.7 mm) 1.76 in (44.7 mm)
Max. Pull Tension: 678 lbs (308 kg)
Recommended Max Baking Cycles: 24 Hours @ 300°F (149°C)
Bulk Cable Weight: 226 lbs/1000ft

Standards and Compliance

Sustainability: CA Prop 65
AWM Compliance: AWM 3192
CEC / C(UL) Compliance: CL-1052
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Separator material over conductor.

History

Update and Revision: Revision Number: 0.457 Revision Date: 11-23-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
34403 010500 Black Reel 500 ft 612825143710 C F
