Description
Product Overview
| Suitable Applications: | Class 130(B), 155(F) or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications |

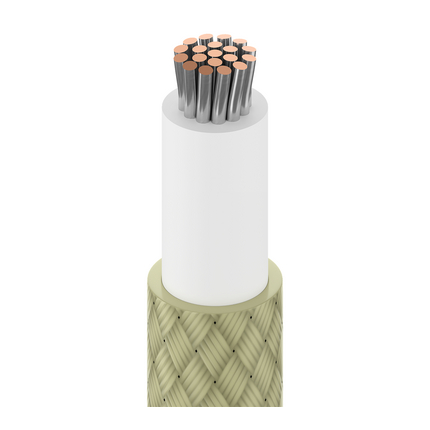

Construction Details
Conductor
| Size | Stranding | Material |
|---|---|---|
| 10 | 19×22.5 | TC – Tinned Copper |
Insulation
| Material | Nom. Thickness |
|---|---|
| Silicone Rubber | 0.045 in (1.1 mm) |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| Lacquered Glass Braid Covering | 0.238 in (6.05 mm) |
| Overall Cable Diameter (Nominal): | 0.238 in (6.05 mm) |
Electrical Characteristics
Voltage
| UL Voltage Rating |
|---|
| 600 V RMS |
Mechanical Characteristics
Temperature
| UL Temperature |
|---|
| 200°C |
| Recommended Max Baking Cycles: | 24 Hours @ 410°F (210°C) |
| Bulk Cable Weight: | 56 lbs/1000ft (83 kg/km) |
Standards and Compliance
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | Horizontal |
| AWM Compliance: | AWM 3075 |
| CEC / C(UL) Compliance: | SEW-2 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes: | Recommended Maximum Baking Cycles: 24 hours @ 410°F (210°C) |
History
| Update and Revision: | Revision Number: 0.424 Revision Date: 05-05-2023 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 32410 010500 | Black | Reel | 500 ft | 612825142690 | C |
| 32410 009500 | White | Reel | 500 ft | 612825142683 | C |
