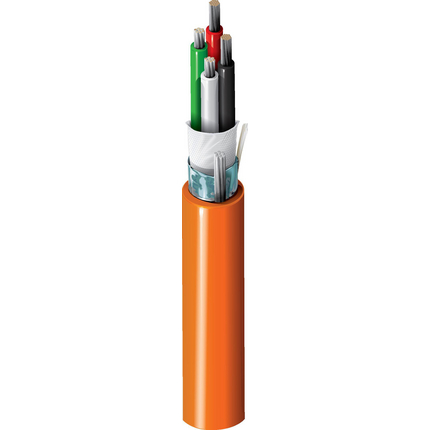

3126A – DeviceBus® for Square D/Seriplex®, 3 Pr #12+16+22 Str TC, PVC+PVC+PO Ins, OS (Data), PVC Jkt, CM

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Conductors
16 26×30 TC – Tinned Copper 2
22 7×30 TC – Tinned Copper 2
12 65×30 TC – Tinned Copper 2
Conductor Count: 6
Insulation
Element Material Nominal Wall Thickness
16 AWG PE – Polyethylene 0.025 in
22 AWG PE – Polyethylene 0.0405 in
12 AWG PVC – Polyvinyl Chloride 0.018 in
Color Chart
Number Color
1 (16 AWG) Red and Black
2 (22 AWG) Green and White
3 (12 AWG) White/Red and White/Black
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 22 7×30
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness Separator Material
PVC – Polyvinyl Chloride .486 x .363 in 0.039 in PO – Polyolefin (Foam) Tape

Construction and Dimensions

Cabling
Lay Direction
Left Hand

Electrical Characteristics

Conductor DCR
Element Max. Outer Shield DCR Nominal Conductor DCR Nominal Outer Shield DCR
16 AWG 16 Ohm/1000ft 4.49 Ohm/1000ft 16 Ohm/1000ft
22 AWG 18.1 Ohm/1000ft
12 AWG 1.8 Ohm/1000ft
Capacitance
Element Nom. Capacitance Conductor to Shield
16 AWG 28 pF/ft
22 AWG 16 pF/ft
Impedance
Nominal Characteristic Impedance
120 Ohm
Delay
Nominal Velocity of Propagation (VP) [%] Nominal Velocity of Propagation (VP) Description
78% 16 & 22 AWG
78% 12 AWG
48%
Voltage
UL Description UL Voltage Rating
CL2 300 V RMS
CM

Temperature Range

UL Temp Rating: 75°C
Operating Temperature Range: -20°C to +75°C

Mechanical Characteristics

Bulk Cable Weight: 105 lbs/1000ft
Max. Pull Tension: 262 lbs

Standards

NEC Articles: Article 725, Article 800
NEC/(UL) Compliance: CL2, CM
CEC/C(UL) Compliance: CM

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
3126A 0031000 Orange Reel 1,000 ft 612825142041
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.344 Revision Date: 12-22-2023
