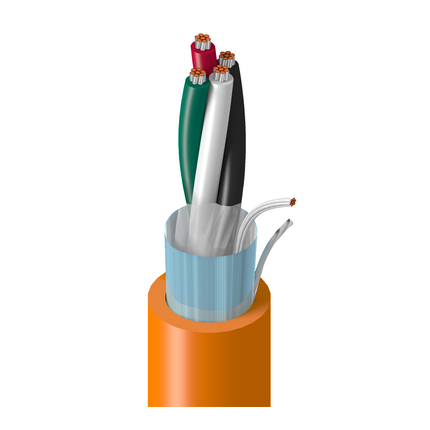

3124A - DeviceBus® for Square D/Seriplex®, 2 Pr #18+22 Str TC, FPE Ins, OS, PVC Jkt, CM

3124A – DeviceBus® for Square D/Seriplex®, 2 Pr #18+22 Str TC, FPE Ins, OS, PVC Jkt, CM

Call for Price

Compare
SKU: 3124A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Power Pair(s) 1 18 AWG 16×30 TC – Tinned Copper
Data Pair(s) 1 22 AWG 7×30 TC – Tinned Copper
Insulation
Element Material Nom. Thickness Color Code Notes
Power Pair(s) PE – Polyethylene (Foam) 0.026 in (0.66 mm) Black & Red HDPE
Data Pair(s) PE – Polyethylene (Foam) 0.0315 in (0.800 mm) White & Green HDPE
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC Foam PP tape under foil tape
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.039 in (0.99 mm) 0.308 in (7.82 mm) Yes
Overall Cable Diameter (Nominal): 0.308 in (7.82 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedence Nom. Velocity of Prop.
Power Pair(s) 6.8 Ohm/1000ft (22 Ohm/km) 20 pF/ft
Data Pair(s) 18.1 Ohm/1000ft (59.4 Ohm/km) 16 pF/ft 120 Ohm 78%
Nom. Outer Shield DCR: 10.7 Ohm/1000ft (35.1 Ohm/km)
Voltage
UL Voltage Rating
300 V (CM), 600 V (UL AWM 20201)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
3.75 in (95.3 mm) 3.75 in
Max. Pull Tension: 60 lbs (27 kg)
Bulk Cable Weight: 39.3 lbs/1000ft (58.5 kg/km)

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: UL1685 UL Loading
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 800, CL2, CM
AWM Compliance: AWM 20201
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.455 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
3124A 0031000 Orange Reel 1,000 ft 612825142010 C
