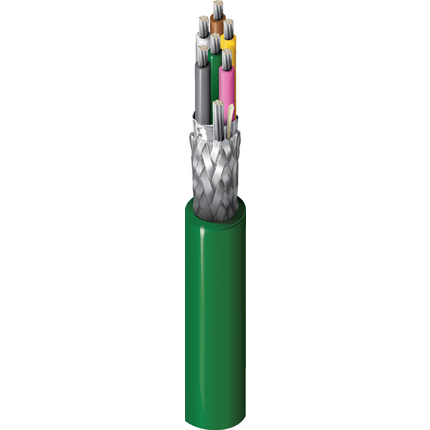

3120A - DeviceBus® for InterBus®-S, 3 Pr #24 Str TC, PO Ins, OS+TC Brd, PUR Jkt, AWM 20233

3120A – DeviceBus® for InterBus®-S, 3 Pr #24 Str TC, PO Ins, OS+TC Brd, PUR Jkt, AWM 20233

Call for Price

Compare
SKU: 3120A Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
24 7×32 TC – Tinned Copper 3
Conductor Count: 6
Insulation
Material Nominal Wall Thickness
PE – Polyethylene 0.016 in
Color Chart
Number Color
1 White & Brown
2 Pink & Gray
3 Yellow & Green
Outer Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100% TC – Tinned Copper 24
Braid 2 Tinned Copper (TC) 90%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PUR – Polyurethane 0.277 in 0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
26 Ohm/1000ft 2.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
15.4 pF/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Max. Recommended Current [A]
2.7 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 80°C
Operating Temperature Range: -40°C to +80°C

Mechanical Characteristics

Oil Resistance: Yes
Bulk Cable Weight: 54 lbs/1000ft
Max. Pull Tension: 33 lbs
Min. Bend Radius/Minor Axis: 3 in

Standards

UL AWM Style Compliance: AWM 20233
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
3120A G7W500 Green, Matte Reel 500 ft 612825141990
3120A G7W1000 Green, Matte Reel 1,000 ft 612825141983
3120A G7W5000 Green, Matte Reel 5,000 ft 612825142003
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.409 Revision Date: 05-05-2023
