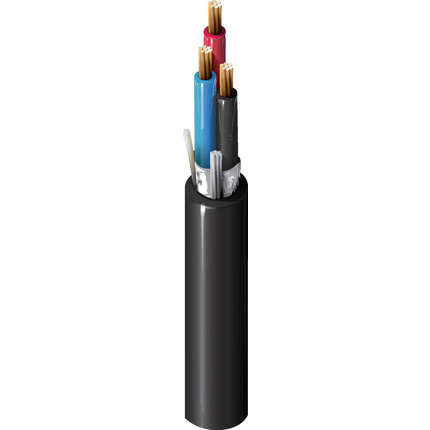

3118A – Inst, 16 Tri #16 Str BC, PVC-NYL Ins E1, IS/OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry 90C Wet
Call for Price
CompareDescription
Product Overview
| Suitable Applications: | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, …),low voltage digital control (24v, ),RTD, control circuits, distributed control system (DCS),programmable logic controller (PLC), Solenoids, Valves, actuators, positioners |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Triad(s) | 16 | 16 AWG | 7×24 | BC – Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Color Code |
|---|---|---|---|
| Triad(s) | PVC/Nylon – Polyvinyl Chloride + Nylon | 0.022 in (0.56 mm) | Black, White, Red and Numbered |
Inner Shield
| Element | Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|---|
| Triad(s) | Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (7×26) TC |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 16 AWG (7×24) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC – Polyvinyl Chloride | 0.083 in (2.1 mm) | 1.158 in (29.41 mm) | Yes |
| Overall Cable Diameter (Nominal): | 1.158 in (29.41 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR |
|---|---|---|
| Triad(s) | 3.67 Ohm/1000ft (12.0 Ohm/km) | 4.99 Ohm/1000ft (16.4 Ohm/km) |
Voltage
| UL Voltage Rating |
|---|
| 600 V (TC), 150 V (NPLF) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 90°C Dry, 90°C Wet | -30C to 90C Dry, 90C Wet |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 11.6 in (295 mm) | 11.6 in (295 mm) |
| Max. Pull Tension: | 1771 lbs (803.3 kg) |
| Bulk Cable Weight: | 838 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial |
| Flammability / Reaction to Fire: | UL1685 (FT4 Loading), FT4, 1202 |
| NEC / UL Compliance: | Article 336, Article 760, NPLF, TC-ER |
History
| Update and Revision: | Revision Number: 0.176 Revision Date: 01-04-2024 |
