Product Overview
| Suitable Applications: |
harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. |

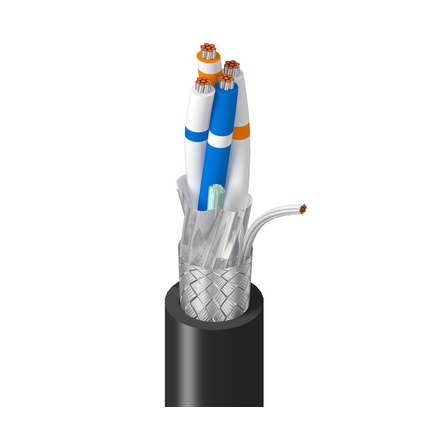

Construction Details
| Element |
No. of Elements |
Size |
Stranding |
Material |
| Pair(s) |
2 |
22 AWG |
7×30 |
TC – Tinned Copper |
| Element |
Material |
Nom. Thickness |
Nom. Insulation Diameter |
Color Code |
Notes |
| Pair(s) |
PE – Polyethylene (Foam) |
0.025 in (0.64 mm) |
0.079 in (2.0 mm) |
White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe |
HDPE |
| Shield Type |
Material |
Coverage |
Drainwire Type |
| Tape |
Bi-Laminate (Alum+Poly) |
100% |
22 AWG (7×30) TC |
| Braid |
Tinned Copper (TC) |
65% |
|
| Material |
Nom. Thickness |
Nom. Diameter |
| PVC – Polyvinyl Chloride |
0.053 in (1.3 mm) |
0.350 in (8.89 mm) |
| Overall Cable Diameter (Nominal): |
0.350 in (8.89 mm) |
Electrical Characteristics
| Element |
Nom. Conductor DCR |
Nom. Capacitance Cond-to-Cond |
Nom. Capacitance Cond-to-Other (Conds + Shield) |
Nom. Characteristic Impedence |
Nom. Velocity of Prop. |
Max. Current |
| Pair(s) |
18.2 Ohm/1000ft |
11 pF/ft (36 pF/m) |
20.9 pF/ft |
120 Ohm |
78% |
4.8 Amps per Conductor at 30ºC |
| Nom. Outer Shield DCR: |
3.663 Ohm/1000ft (12.02 Ohm/km) |
High Frequency (Nominal/Typical)
| Element |
Frequency [MHz] |
Nom. Insertion Loss (Attenuation) |
| Pair(s) |
1 |
0.5 dB/100ft |
| UL Voltage Rating |
| 300 V (CM, PLTC) |
Mechanical Characteristics
| UL Temperature |
Operating |
| 60°C |
-20°C to +60°C |
| Stationary Min. |
Installation Min. |
| 4.2 in (110 mm) |
4.2 in (110 mm) |
| Max. Pull Tension: |
80 lbs (36 kg) |
| Bulk Cable Weight: |
58 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: |
Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability / Reaction to Fire: |
UL 1685 UL Loading, IEC 60332-1-2 |
| CPR Compliance: |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
| NEC / UL Compliance: |
Article 725, Article 800, CM, PLTC |
| CEC / C(UL) Compliance: |
CM |
| European Directive Compliance: |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: |
UKCA Mark |
| APAC Compliance: |
China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): |
DMX-512 |
Product Notes
| Notes: |
Oil Resistance: Passes Oil Res II Per UL1277, Table 10.17. For CPE jacketed version order YR46792. |
History
| Update and Revision: |
Revision Number: 0.596 Revision Date: 12-22-2023 |
Part Numbers
| Item # |
Color |
Putup Type |
Length |
UPC/EAN |
Footnote |
| 3107A.00305 |
Black |
Reel |
305 m |
8719605005953 |
|
| 3107A 0101000 |
Black |
Reel |
1,000 ft |
612825141686 |
C |
| 3107A.001220 |
Black |
Reel |
1,220 m |
8719605005939 |
|
| 3107A.001525 |
Black |
Reel |
1,525 m |
8719605005946 |
|
| 3107A 0105000 |
Black |
Reel |
5,000 ft |
612825141709 |
C N |
| 3107A.01305 |
Green |
Reel |
305 m |
8719605005960 |
|
