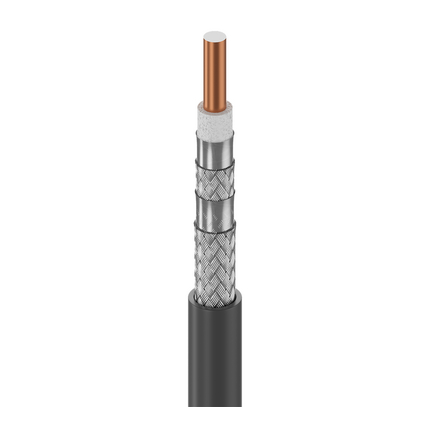

3093A - ControlBus™, Coax RG-6, #18 Sol BCCS, FFEP Ins, QUAD AL Shld, PVDF Jkt, CMP High Temp 150C

3093A – ControlBus™, Coax RG-6, #18 Sol BCCS, FFEP Ins, QUAD AL Shld, PVDF Jkt, CMP High Temp 150C

Call for Price

Compare
SKU: 3093A Categories: , ,

Description

Product Overview

Suitable Applications: Harsh environment, factory automation, ControlNet™, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications

Construction Details

RG Type: 6
Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
FEP – Fluorinated Ethylene Propylene (Foam) 0.170 in (4.32 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 40%
Outer Jacket
Material Nom. Diameter
PVDF – Polyvinylidene Fluoride 0.274 in (6.96 mm)
Overall Cable Diameter (Nominal): 0.274 in (6.96 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5 – 50 MHz 23 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.34 dB/100ft
2 MHz 0.37 dB/100ft
5 MHz 0.44 dB/100ft
10 MHz 0.58 dB/100ft
20 MHz 0.85 dB/100ft
50 MHz 1.39 dB/100ft
100 MHz 1.99 dB/100ft
200 MHz 2.92 dB/100ft
300 MHz 3.68 dB/100ft
400 MHz 4.38 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft 2.6 Ohm/1000ft (8.5 Ohm/km) 16.5 pF/ft (54.1 pF/m) 75 Ohm 82%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -20°C to +150°C
Bend Radius
Installation Min.
2.75 in (69.9 mm)
Max. Pull Tension: 104 lbs (47.2 kg)
Bulk Cable Weight: 36 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor, Outdoor, Aerial – When supported by messenger wire, Burial
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262
NEC / UL Compliance: CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 3092A

Product Notes

Notes: Blue available as standard in 1000-ft put-up only. Suitable for Outdoor and Direct Burial applications.

History

Update and Revision: Revision Number: 0.499 Revision Date: 11-27-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
3093A 0101000 Black Reel 1,000 ft 612825141464 C
3093A 0102500 Black Reel 2,500 ft 612825141488 C N
3093A 0105000 Black Reel 5,000 ft 612825141495 C Z
