| Suitable Applications: | Harsh environment, factory automation, ControlNet, Modbus II, Industrial Coax, Belden ControlNet cables provide maximum signal integrity and run length exceeding the high-speed, time-critical requirements necessary for ControlNet factory floor applications |
| RG Type: | 6 |

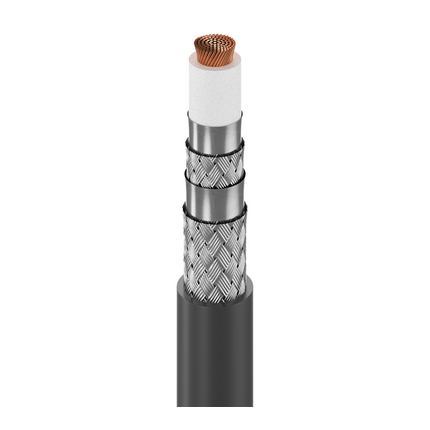

| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 20 AWG | 105×40 | 0.040 in | BC – Bare Copper |
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE – Polyethylene (Foam) | 0.183 in (4.65 mm) | White |
| Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
|---|---|---|---|---|
| 1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
| 2 | Braid | Aluminum | 60% | |
| 3 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
| 4 | Braid | Aluminum | 40% |
| Material | Nom. Diameter |
|---|---|
| PVC – Polyvinyl Chloride | 0.303 in (7.70 mm) |
| Overall Cable Diameter (Nominal): | 0.303 in (7.70 mm) |
| Frequency | Min. Structural Return Loss |
|---|---|
| 5 – 400 MHz | 23 dB |
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.36 dB/100ft |
| 2 MHz | 0.47 dB/100ft |
| 5 MHz | 0.8 dB/100ft |
| 10 MHz | 1.2 dB/100ft |
| 20 MHz | 2.0 dB/100ft |
| 50 MHz | 3.2 dB/100ft |
| 100 MHz | 4.6 dB/100ft |
| 200 MHz | 6.5 dB/100ft |
| 300 MHz | 8 dB/100ft |
| 400 MHz | 9.3 dB/100ft |
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield |
Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 10.5 Ohm/1000ft | 2.6 Ohm/1000ft (8.5 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 82% |
| UL Voltage Rating |
|---|
| 300 V (CMR, CMG) |
| Electrical Characteristics Notes: | IEEE 802.4 MAP/IEEE 802.7 Mini-Map |
| UL Temperature | Operating |
|---|---|
| 75°C | -40°C to +75°C |
| Installation Min. |
|---|
| 3 in (76 mm) |
| Max. Pull Tension: | 35 lbs (16 kg) |
| Bulk Cable Weight: | 29 lbs/1000ft |
| Environmental Suitability: | Indoor – Riser, Indoor, Aerial – When supported by messenger wire |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | UL 1666 Riser |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | CMR, CL2R |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Notes: | Flex Life: 1.5 Million cycles @ 6.0″” minimum bend radius. For Rockwell authorized Flexible ControlNet order YR28890 (Tinned Copper Braid Version). |
| Update and Revision: | Revision Number: 0.507 Revision Date: 05-25-2023 |
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 3092F 0101000 | Black | Reel | 1,000 ft | 612825141396 | |
| 3092F 0105000 | Black | Reel | 5,000 ft | 612825141402 | C |
