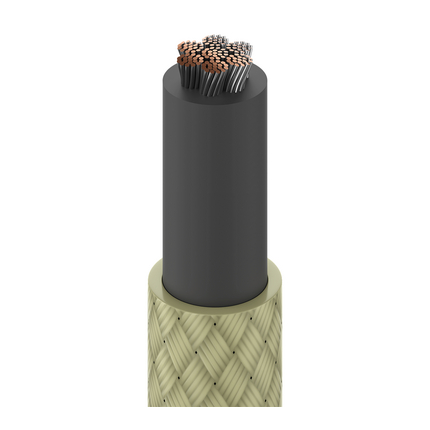

30890 - Lead Wire, #1/0 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

30890 – Lead Wire, #1/0 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

Call for Price

Compare
SKU: 30890 Categories: , , ,

Description

Product Overview

Suitable Applications: Class 130(B), 155(F)
or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 1/0 AWG 262×24 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
Silicone Rubber 0.080 in (2.0 mm) 0.594 in (15.1 mm)
Outer Jacket
Material Nom. Diameter
Lacquered Glass Braid Covering 0.670 in (17.0 mm)
Overall Cable Diameter (Nominal): 0.670 in (17.0 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
0.114 Ohm/1000ft 366.4 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
600 V (AWM 3126) 600 V (CSA SEW-2)

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C To +200°C
Bend Radius
Stationary Min. Installation Min.
6.7 in (170 mm) 6.7 in (170 mm)
Max. Pull Tension: 1321 lbs (599.2 kg)
Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 465 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
AWM Compliance: AWM 3126
CEC / C(UL) Compliance: SEW-2
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.497 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
30890 010100 Black Reel 100 ft 612825141174 C
30890 010250 Black Reel 250 ft 612825141181 C F
30890 009100 White Reel 100 ft 612825141150 C
30890 009250 White Reel 250 ft 612825141167 C F
