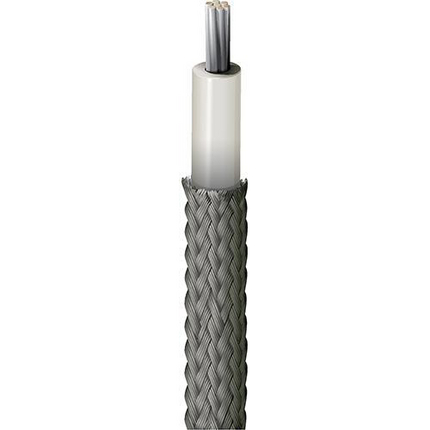

30816 - Lead Wire, #16 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3070

30816 – Lead Wire, #16 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3070

Call for Price

Compare
SKU: 30816 Categories: , , ,

Description

Product Overview

Suitable Applications: Class 130(B), 155(F)
or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Conductors
16 26×30 TC – Tinned Copper 1
Conductor Count: 1
Insulation
Material Nominal Wall Thickness
Silicone Rubber 0.032 in
Outer Jacket
Material Nominal Diameter
Lacquered Glass Braid Covering 0.143 in

Electrical Characteristics

Voltage
UL Voltage Rating
600 V RMS

Temperature Range

UL Temp Rating: 150°C
Operating Temperature Range: -70°C To +150°C

Mechanical Characteristics

Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 15 lbs/1000ft
Min. Bend Radius/Minor Axis: 0.58 in

Standards

UL AWM Style Compliance: AWM 3070
CSA Rating: 600 V, 150°C
CSA Type: SEWF-2

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: Horizontal
CSA Flammability: FT1
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
30816 010500 Black Reel 500 ft 612825140733
30816 009500 White Reel 500 ft 612825140726
Footnote: F – MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 50′.

History

Update and Revision: Revision Number: 0.367 Revision Date: 05-05-2023
