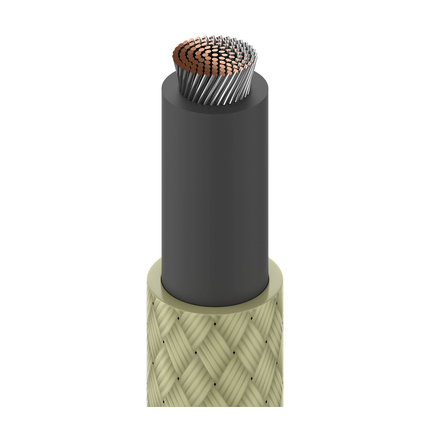

30802 - Lead Wire, #2 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125

30802 – Lead Wire, #2 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3125

Call for Price

Compare
SKU: 30802 Categories: , , ,

Description

Product Overview

Suitable Applications: Class 130(B), 155(F)
or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 2 AWG 163×24 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
Silicone Rubber 0.069 in (1.8 mm) 0.457 in (11.6 mm)
Outer Jacket
Material Nom. Diameter
Lacquered Glass Braid Covering 0.496 in (12.6 mm)
Overall Cable Diameter (Nominal): 0.496 in (12.6 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
0.180 Ohm/1000ft 273.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
600 V (AWM 3125) 600 V (CSA SEW-2)

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C To +200°C
Bend Radius
Stationary Min. Installation Min.
4.96 in (126 mm) 4.96 in (126 mm)
Max. Pull Tension: 824.6 lbs (374.0 kg)
Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 278 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
AWM Compliance: AWM 3125
CEC / C(UL) Compliance: SEW-2
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.497 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
30802 010250 Black Reel 250 ft 612825140542 C F
30802 009250 White Reel 250 ft 612825140535 C F
