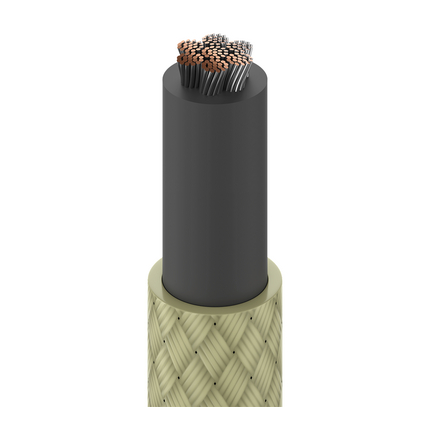

30801 - Lead Wire, #1 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

30801 – Lead Wire, #1 Str TC, Silicone Ins, Fiber Glass Jkt, AWM 3126

Call for Price

Compare
SKU: 30801 Categories: , , ,

Description

Product Overview

Suitable Applications: Class 130(B), 155(F)
or 180(H) insulation systems, internal wiring of lighting fixtures and appliances, high temperature applications

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 1 1 AWG 210×24 TC – Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter
Silicone Rubber 0.08 in (2.0 mm) 0.544 in (13.8 mm)
Outer Jacket
Material Nom. Diameter
Lacquered Glass Braid Covering 0.622 in (15.8 mm)
Overall Cable Diameter (Nominal): 0.622 in (15.8 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
0.143 Ohm/1000ft 315.2 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating Voltage Rating
600 V (AWM 3126) 600 V (CSA SEW-2)

Mechanical Characteristics

Temperature
UL Temperature Operating
200°C -70°C To +200°C
Bend Radius
Stationary Min. Installation Min.
6.22 in (158 mm) 6.22 in (158 mm)
Max. Pull Tension: 1085 lbs (492.1 kg)
Recommended Max Baking Cycles: 24 Hours @ 410°F (210°C)
Bulk Cable Weight: 382 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor
Sustainability: CA Prop 65
AWM Compliance: AWM 3126
CEC / C(UL) Compliance: SEW-2
European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.482 Revision Date: 01-20-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
30801 010100 Black Reel 100 ft 612825140511 C
30801 010250 Black Reel 250 ft 612825140528 C F
30801 009100 White Reel 100 ft 612825140498 C
30801 009250 White Reel 250 ft 612825140504 C F
