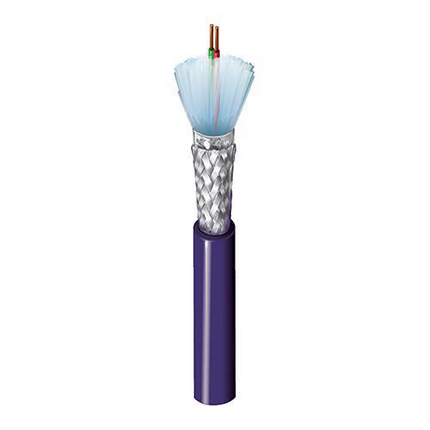

3079E - Profibus, 1 Pr #22 Str BC, PE Ins, OS+TC Brd, PVC Jkt, PLTC CMG Profibus DP

3079E – Profibus, 1 Pr #22 Str BC, PE Ins, OS+TC Brd, PVC Jkt, PLTC CMG Profibus DP

Call for Price

Compare
SKU: 3079E Categories: , , ,

Description

Product Overview

Suitable Applications: harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 1 22 AWG 7×30 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE – Polyethylene (Foam) 0.035 in (0.89 mm) 0.102 in (2.59 mm) Red & Green Flame Retardant, Foam w/ skin
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 65%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.043 in (1.1 mm) 0.314 in (7.98 mm)
Table Notes: Jacket OD +/- 0.007
Overall Cable Diameter (Nominal): 0.314 in (7.98 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 17.6 Ohm/1000ft 150 Ohm 78% 6 Amps per Conductor at 30ºC
Nom. Outer Shield DCR: 6.32 Ohm/1000ft (20.7 Ohm/km)
High Frequency (Nominal/Typical)
Element
Pair(s)
High Frequency
Max. Insertion Loss (Attenuation)
0.51 dB/100m
1.57 dB/100m
4.8 dB/100m
Voltage
UL Voltage Rating
300 V (CMG, PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +75°C
Bend Radius
Stationary Min. Installation Min.
3.768 in (95.71 mm) 3.768 in (95.71 mm)
Max. Pull Tension: 41 lbs (19 kg)
Bulk Cable Weight: 39 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance
Flammability / Reaction to Fire: UL 1685 FT4 Loading, IEC 60332-1-2
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, Article 800, CMG, PLTC
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark

History

Update and Revision: Revision Number: 0.561 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
3079E B021000 Purple Reel 1,000 ft 612825140412 C
3079E B025000 Purple Reel 5,000 ft 612825140443 C Z
