3079ALS – Profibus DP, 1PR #22 Sol BC, PO ins, F/B, LSNH Jkt, 300 V

Call for Price

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

parts-118

(SKU: 103-171114002) – MicroFlow sensor arm set 2.0 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: exposure to rodent, crush, or cut through force, harsh environment, outdoors, where multiple cable runs are required, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil.

Physical Characteristics (Overall)

Conductor
AWG Stranding Material No. of Pairs
22 Solid BC – Bare Copper 1
Conductor Count: 2
Total Number of Pairs: 1
Insulation
Material Nominal Diameter Diameter +/- Tolerance
PE – Polyethylene (Foam) 2.51 mm 0.09 mm
Color Chart
Number Color
Pair 1 Red & Green
Inner Shield
Type Material Material Trade Name Coverage [%]
Tape Bi-Laminate (Alum+Poly) Beldfoil®
Braid Tinned Copper (TC) 65%
Inner Jacket
Material Color Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) Chrome (RAL 7037) 8 mm 1.1 mm
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 12.4 mm 1.3 mm

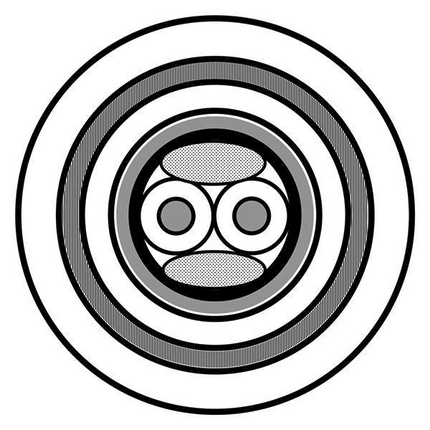

Construction and Dimensions

Cabling
Description Filler
1 pair and 2 fillers twisted to cable core Flame retardant Polypropylene (2x) (2.54 mm)
Armor
Type of Armor Material Thickness of Armoring Wires Coverage Percentage
Steel Wire Armoring Galvanized steel wire 0.9 mm Min. 95%

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
52 Ohm/km
Capacitance
Max. Capacitance Unbalance Nom. Capacitance Conductor to Conductor
1 pF/m 27.9 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
3 – 20 MHz 150 Ohm 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
78%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
0.2 MHz 0.9 dB/100m
4 MHz 2.2 dB/100m
16 MHz 4.5 dB/100m
Voltage
Voltage Rating [V]
300 V

Temperature Range

Installation Temperature Range: -15°C To +80°C
Storage Temperature Range: -45°C To +80°C
Operating Temp Range (Flexible Install): -15°C To +80°C
Operating Temp Range (Fixed Install): -45°C To +80°C

Mechanical Characteristics

Oil Resistance: IEC 60811-404
Min. Bend Radius During Installation: 186 mm

Standards

CPR Euroclass: Eca
CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space: Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor – Euroclass Eca

Suitability

Suitability – Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2, IEC 60332-3-24
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
3079ALS.00152 Black Reel 152 m 8719605005625
3079ALS.00305 Black Reel 305 m 8719605005632
3079ALS.00310 Black Reel 310 m 8719605005649
3079ALS.00385 Black Reel 385 m 8719605005656
3079ALS.00400 Black Reel 400 m 8719605005663
3079ALS.00410 Black Reel 410 m 8719605005670
3079ALS.00500 Black Reel 500 m 8719605005687
3079ALS.00510 Black Reel 510 m 8719605005694
3079ALS.001000 Black Reel 1,000 m 8719605005618
3079ALS.02305 Violet Reel 305 m 8719605172709
3079ALS.02500 Violet Reel 500 m 8719605005724
3079ALS.011000 Violet Reel 1,000 m 8719605005700
3079ALS.021000 Violet Reel 1,000 m 8719605005717

History

Update and Revision: Revision Number: 0.228 Revision Date: 02-20-2024
