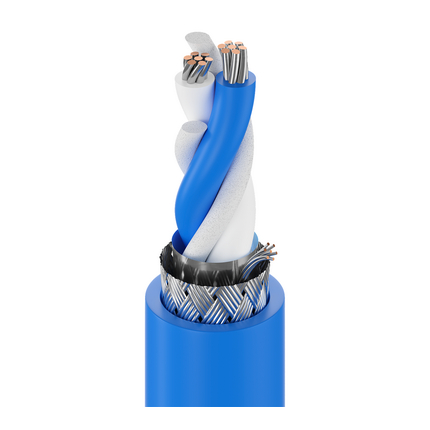

3074F - DataTray® 120? Twinax, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, TC, PLTC, ITC, CMG

3074F – DataTray® 120? Twinax, 1 Pr #18 Str TC, PP Ins, OS+TC Brd, PVC Jkt, TC, PLTC, ITC, CMG

Call for Price

Compare
SKU: 3074F Categories: , ,

Description

Product Overview

Suitable Applications: Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc. RS-485

Construction Details

Conductor
Element No. of Elements Size Stranding Nom. Diameter Material
Pair(s) 1 18 AWG 7×26 0.046 in TC – Tinned Copper
Insulation
Element Material Nom. Insulation Diameter Color Code Notes
Pair(s) PP – Polypropylene 0.164 in (4.17 mm) White & Blue Flame Retardant
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage Notes
1 Tape Bi-Laminate (Alum+Poly) Beldfoil® 100% Foil Out
2 Braid Tinned Copper (TC) 55%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.460 in (11.7 mm)
Overall Cable Diameter (Nominal): 0.460 in (11.7 mm)

Electrical Characteristics

Attenuation
Frequency Nom. Attenuation
3 MHz 0.34 dB/100ft
10 MHz 1.07 dB/100ft
50 MHz 2.39 dB/100ft
100 MHz 3.38 dB/100ft
200 MHz 4.78 dB/100ft
400 MHz 6.76 dB/100ft
Electricals
Element Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Cond (Mutual) Nom. Characteristic Impedance Nom. Velocity of Prop.
Pair(s) 6.9 Ohm/1000ft 2.83 Ohm/1000ft (9.28 Ohm/km) 12.3 pF/ft (40.4 pF/m) 120 Ohm 65%
Voltage
UL Voltage Rating
600 V (TC), 300 V (CMG, PLTC)

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C Dry, PLTC 75°C Dry/Wet -40°C to +75°C
Bend Radius
Stationary Min. Installation Min.
3.2 in (81 mm) 2.5 in (64 mm)
Max. Pull Tension: 93 lbs (42 kg)
Bulk Cable Weight: 97 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, UV Resistance, Aerial – When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL1685 UL Loading, FT1FT4
NEC / UL Compliance: Article 336, Article 725, Article 727, Article 800, CMG, ITC, PLTC, TC
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Cable contains rod fillers for better electrical performance. CPE Jacket Optional.

History

Update and Revision: Revision Number: 0.478 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
3074F C55500 Blue, Cairo Reel 500 ft 612825140177 C
3074F C551000 Blue, Cairo Reel 1,000 ft 612825140153 C
3074F C552500 Blue, Cairo Reel 2,500 ft 612825140160 C
3074F C555000 Blue, Cairo Reel 5,000 ft 612825140184 C N
