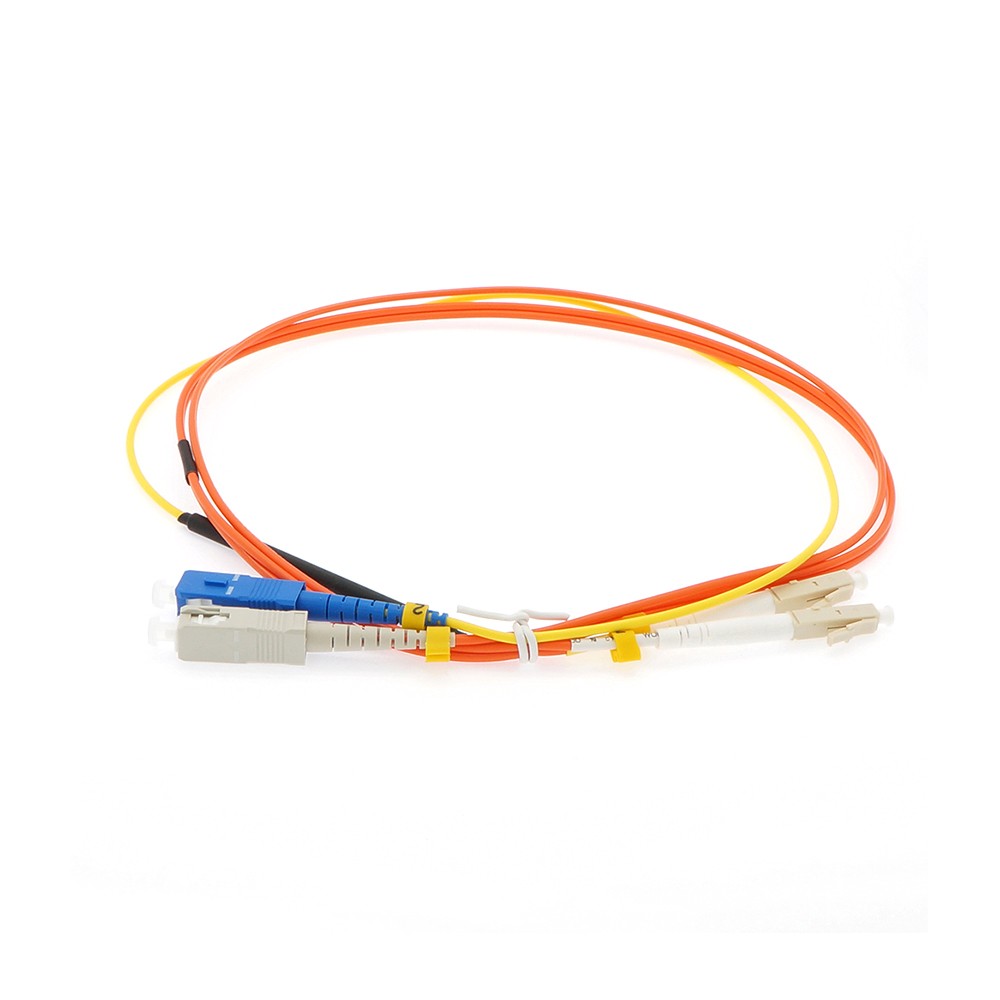

2m Singlemode SC to OM1 LC Duplex Mode Conditioning Fiber Optic Patch Cable SKU: ATDS105234
$17.38
2m Singlemode SC to OM1 LC Duplex Mode Conditioning Fiber Optic Patch Cable
7 in stock
CompareDescription
Description
With the later network deployment, some network units are gradually transformed from multimode devices to singlemode devices. In the case of coexistence of the two modes, the mode conditioning patch cable is the best feasible solutionfor the interconnection between the two.
| Connector Type | SC-LC Duplex | ||
| Polishing | UPC | ||
| Return Loss | 55dB | ||
| Insertion Loss | 0.5dB (SM to MM Plus Connector Loss) | ||
| Ferrule Material | Ceramic (zirconia) | ||
| Ferrule Diameter | 1.25 mm / 2.5 mm | ||
| Jacket OD | 2mm | ||
| Fiber Mode | Singlemode SC / OM1 LC | ||
| Jacket Material | OFNR/LSZH | ||
| Operation Temperature Range | -20°C +70°C |
Additional information
| Weight | 0.09 lbs |
|---|
