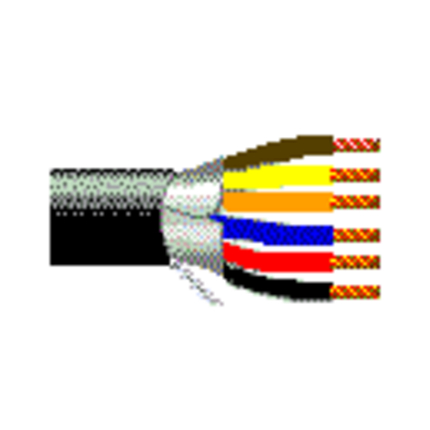

28341AS - TC VN/PVC, 12 C #16 Str BC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

28341AS – TC VN/PVC, 12 C #16 Str BC, PVC-NYL Ins E2, OS, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Call for Price

Compare
SKU: 28341AS Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 12 16 AWG 7×24 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC/Nylon – Polyvinyl Chloride + Nylon 0.056 in (1.4 mm) 0.099 in (2.5 mm) Black, Red, Blue, Orange, Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 16 AWG (7×24) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.047 in (1.2 mm) 0.509 in (12.9 mm) Yes
Overall Cable Diameter (Nominal): 0.509 in (12.9 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
4.45 Ohm/1000ft 9 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Temperature
UL Temperature
90°C Dry, 90°C Wet
Bend Radius
Stationary Min. Installation Min.
6.108 in (155.1 mm) 6.108 in (155.1 mm)
Max. Pull Tension: 464.1 lbs (210.5 kg)
Bulk Cable Weight: 185 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance: Article 336, Article 402, TC-ER, TFFN

History

Update and Revision: Revision Number: 0.56 Revision Date: 04-14-2023
