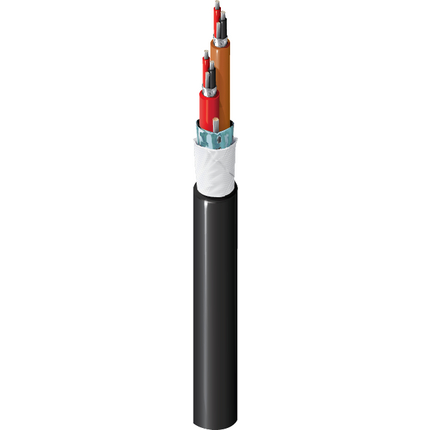

2816RW – Indoor/Outdoor Stadium Cable, Analog Audio Snake, 6 Pair 22 AWG, stranded, CMR

Call for Price

parts-139

Test

$354.90

parts-139

(SKU: 103-191021001) – MicroFlow drive wheel A 2.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-138

(SKU: 103-191021002) – MicroFlow drive wheel B 2.5 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-139

(SKU: 103-191021003) – MicroFlow drive wheel C 3.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-136

(SKU: 103-191021004) – MicroFlow drive wheel D 6.0 mm incl – o-ring – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$354.90

parts-119

(SKU: 103-171114001) – MicroFlow sensor arm set 1.5 mm – Microfiber Blowers for Microduct Cable Installation – Microfiber Blowers – Microduct Fiber Cable Blowers – FTTH – FTTH Blowers – Fiber to the Home – Fiber to the Home Blowers – Fremco

$321.10

Description

Product Overview

Suitable Applications: Analog audio, burial, Sports Stadium

Construction Details

Conductor
Size Stranding Material
22 7×30 TC – Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PP – Polypropylene 0.05 in (1.3 mm) Brown, Red, Orange, Yellow, Green, Blue, Red & Blk
Inner Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Inner Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.133 in (3.38 mm)
Outer Jacket
Material Nom. Diameter
CPE – Chlorinated Polyethylene 0.521 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
14.8 Ohm/1000ft (48.6 Ohm/km) 31 pF/ft (100 pF/m) 56 pF/ft (180 pF/m) 2 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Mechanical Characteristics

Temperature
UL Temperature Operating
75°C -30°C To +75°C
Max. Pull Tension: 131 lbs (59.4 kg)
Bulk Cable Weight: 135 lbs/1000ft (201 kg/km)

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, UV Resistance, Aerial – When supported by messenger wire, Burial
Flammability / Reaction to Fire: UL1666 Riser
NEC / UL Compliance: CMR
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Beldfoil® provides high reliability with ease of termination. Print legend includes sequential footage marks. Ripcord under overall jacket.

History

Update and Revision: Revision Number: 0.191 Revision Date: 12-22-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
2816RW 0101000 Black Reel 1,000 ft 612825384885
2816RW 0105000 Black Reel 5,000 ft 612825384892 C Z
