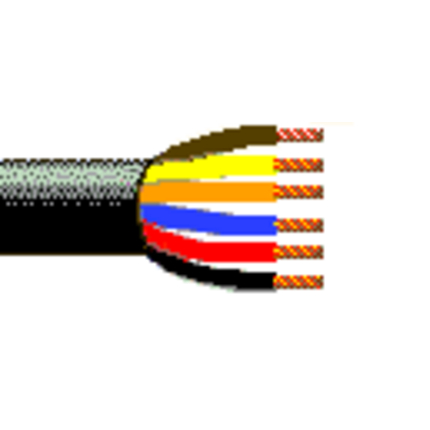

28116A - TC VN/PVC, 9 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

28116A – TC VN/PVC, 9 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Call for Price

Compare
SKU: 28116A Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 9 12 AWG 7×20 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC/Nylon – Polyvinyl Chloride + Nylon 0.021 in (0.53 mm) 0.134 in mm Black, Red, Blue, Orange, Yellow, Brown, Red/Black, Blue/Black, Orange/Black
Outer Shield
Material
No Shield
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.063 in (1.6 mm) 0.610 in (15.5 mm) Yes
Overall Cable Diameter (Nominal): 0.610 in (15.5 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
1.7 Ohm/1000ft 21 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Temperature
UL Temperature Operating
90°C Dry, 90°C Wet -25°C To +90°C
Bend Radius
Stationary Min. Installation Min.
2.44 in (62.0 mm) 3.05 in (77.5 mm)
Max. Pull Tension: 781.2 lbs (354.3 kg)
Bulk Cable Weight: 289 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, UV Resistance, Burial
Flammability / Reaction to Fire: UL 1685 UL Loading, IEEE 1202 FT4
NEC / UL Compliance: Article 336, Article 760, NPLF, TC-ER
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.58 Revision Date: 04-14-2023

Part Numbers

Variants
Item # Putup Type UPC
28116A 01010000 Reel 612825366478
28116A 0105000 Reel 612825366416
