28110A - TC VN/PVC, 3 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

28110A – TC VN/PVC, 3 C #12 Str BC, PVC-NYL Ins E2, Blk PVC Jkt, 600V TC-ER 150V NPLF 90C Dry/Wet SUN RES DIR BUR

Call for Price

Compare
SKU: 28110A Categories: , , , ,

Description

Product Overview

Suitable Applications: Power and Control Applications up to 600V

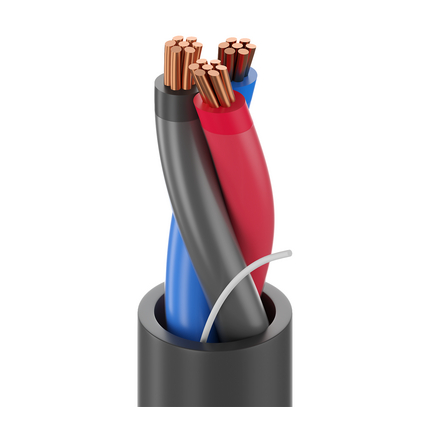

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 12 7×20 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC/Nylon – Polyvinyl Chloride + Nylon 0.022 in (0.56 mm) 0.134 in (3.40 mm) Black, Red, Blue
Outer Jacket
Material Nom. Thickness Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.047 in (1.2 mm) 0.382 in (9.70 mm) Yes

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
1.68 Ohm/1000ft 30 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
600 V (TC-ER), 150 V (NPLF)

Mechanical Characteristics

Temperature
UL Temperature Operating
90°C Dry, 90°C Wet Wet/Dry: -30°C to 90°C
Bend Radius
Stationary Min. Installation Min.
1.52 in (38.6 mm) 1.9 in (48 mm)
Max. Pull Tension: 260.4 lbs (118.1 kg)
Bulk Cable Weight: 103 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL 1685 UL loading, IEEE 1202 FT4
NEC / UL Compliance: Article 336, Article 760, NPLF, TC-ER, THWN-2 Singles
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2)

History

Update and Revision: Revision Number: 0.555 Revision Date: 04-28-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
28110A 01025000 Reel 612825330356
28110A 0105000 Black Reel 5,000 ft 612825135289 C Z
28110A 01010000 Black Reel 10,000 ft 612825135272 C Z
