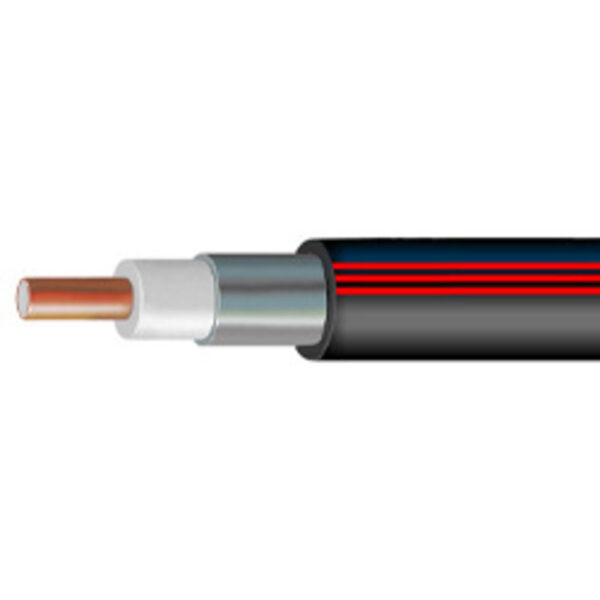

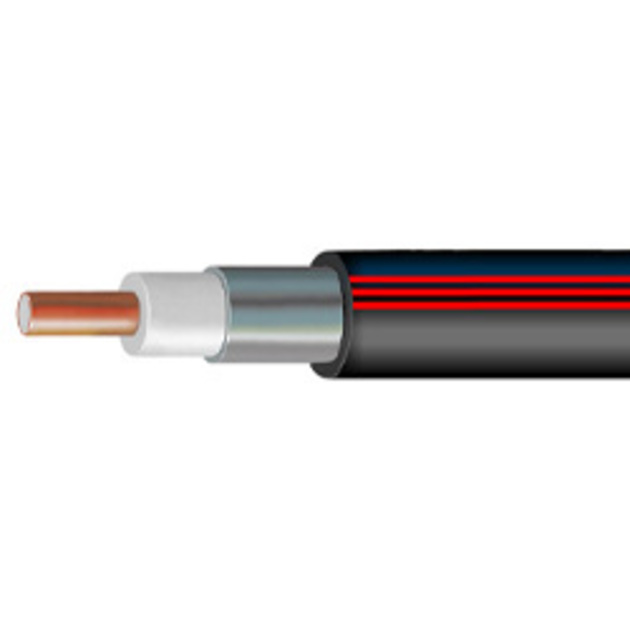

23 Ohm Power Feeder® Trunk and Distribution Cable – black PE jacket with three co-extruded red stripes 5266303 | POWER FEEDER® 625 JCAT 3R SM MT – CommScope

Description

Specifications

Product Classification

Product Type	Coaxial hardline cable
Product Brand	Power Feeder®
Warranty	One year

General Specifications

Cable Type	625 Series
Construction Type	Swaged
Jacket Color	Black with three co-extruded red stripes
Short Description	PF 625 JCAT 3R SM MT PR7708

Dimensions

Cable Length	731.52 m | 2400 ft
Diameter Over Center Conductor, nominal	8.255 mm | 0.325 in
Diameter Over Dielectric, nominal	13.081 mm | 0.515 in
Diameter Over Jacket, nominal	17.399 mm | 0.685 in
Diameter Over Outer Conductor, nominal	15.875 mm | 0.625 in
Jacket Thickness, nominal	0.762 mm | 0.03 in
Outer Conductor Thickness, nominal	1.397 mm | 0.055 in

Electrical Specifications

dc Resistance Note	Nominal values based on a standard condition of 20 °C (68 °F)
dc Resistance, Inner Conductor, nominal	0.525 ohms/km | 0.16 ohms/kft
dc Resistance, Loop, nominal	0.984 ohms/km | 0.3 ohms/kft
dc Resistance, Outer Conductor, nominal	0.459 ohms/km | 0.14 ohms/kft
Jacket Spark Test Voltage	5000 Vac

Material Specifications

Center Conductor Material	Copper-clad aluminum
Dielectric Material	Foam PE
Jacket Material	PE
Outer Conductor Material	Aluminum

Mechanical Specifications

Minimum Bend Radius, standard	228.6 mm | 9 in
Pulling Tension, maximum	362.874 kg | 800 lb

Environmental Specifications

Environmental Space

Aerial

Packaging and Weights

Packaging Type	Reel
Weight, gross	541.692 kg/km | 364 lb/kft

Regulatory Compliance/Certifications

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
