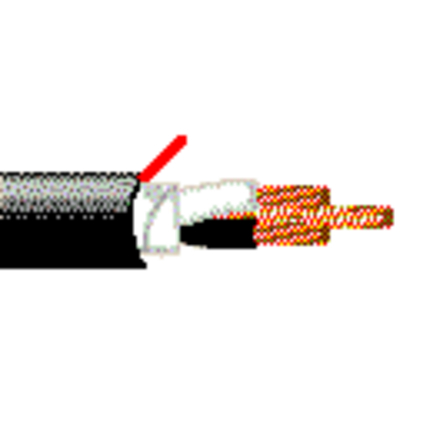

21506 - TC-CIC 600V, 8+G C #14 Str BC, XLPE Ins, Blk PVC Jkt, 90C Dry/Wet CSA HL SUN RES DIR BUR

21506 – TC-CIC 600V, 8+G C #14 Str BC, XLPE Ins, Blk PVC Jkt, 90C Dry/Wet CSA HL SUN RES DIR BUR

Call for Price

Compare
SKU: 21506 Categories: , , , ,

Description

Physical Characteristics (Overall)

Conductor
Element AWG Stranding Material No. of Conductors
Conductor(s) 14 7×22 BC – Bare Copper 8
Ground 14 7×22 BC – Bare Copper 1
Conductor Count: 8
Insulation
Material Nominal Diameter
XLP, XLPO, XLPE (Thermoset) 0.132 in
XLP, XLPO, XLPE (Thermoset) 0.132 in
Color Chart
Number Color
1 Black and Numbered 1
2 Black and Numbered 2
3 Black and Numbered 3
4 Black and Numbered 4
5 Black and Numbered 5
6 Black and Numbered 6
7 Black and Numbered 7
8 Black and Numbered 8
9 Green Ground
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.622 in 0.073 in

Electrical Characteristics

Voltage
Non-UL Description Non-UL Voltage Rating Voltage Rating [V]
CSA TC/CIC 600 V 600 V RMS

Temperature Range

Installation Temperature Range: -25°C TO +90°C
Operating Temperature Range: -40°C To +90°C

Mechanical Characteristics

UV Resistance: Yes
Bulk Cable Weight: 245 lbs/1000ft
Max. Pull Tension: 315 lbs
Min. Bend Radius/Minor Axis: 2.49 in

Standards

CSA AWM Compliance: C22.2#230 Type TC, C22.2#239 Type CIC

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: Yes
EU CE Mark: Yes

Suitability

Suitability – Burial: Yes
Suitability – Indoor: Yes
Suitability – Outdoor: Yes
Suitability – Sunlight Resistance: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Put-Up Type
21506 0105000 Reel

History

Update and Revision: Revision Number: 0.41 Revision Date: 07-19-2023
