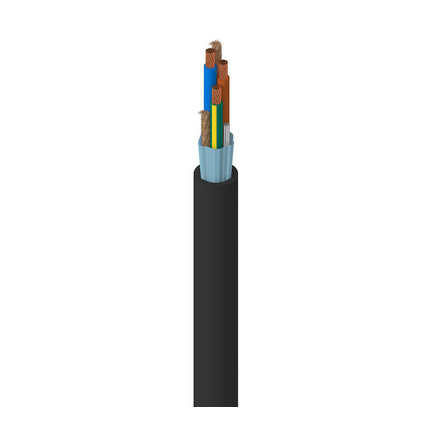

19401 - Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT

19401 – Portable Cordage, 3 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT

Call for Price

Compare
SKU: 19401 Categories: , , , ,

Description

Product Overview

Suitable Applications: Portable cordage and cordage

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 18 42×34 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.018 in (0.46 mm) 0.084 in (2.1 mm) Brown, Blue, Green/Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7×30) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.043 in (1.1 mm) 0.27 in (6.9 mm)

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
6.97 Ohm/1000ft 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
7 Amps per Conductor at 25ºC (over 50 ft)
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature
60°C
Bend Radius
Stationary Min. Installation Min.
2.7 in (69 mm) 2.7 in (69 mm)
Max. Pull Tension: 63.9 lbs (29.0 kg)
Bulk Cable Weight: 45 lbs/1000ft

Standards and Compliance

Environmental Suitability: Oil Resistance
NEC / UL Compliance: Article 400, SVT
AWM Compliance: SVT
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.512 Revision Date: 03-04-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
19401 010250 Black Reel 250 ft 612825127031 F
19401 0101000 Black Reel 1,000 ft 612825127024 F
