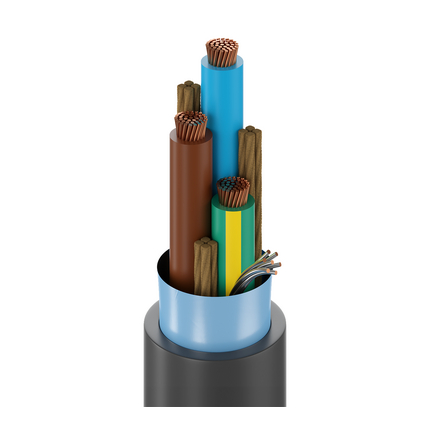

19364 - Portable Cordage, 3 C #14 Str BC, PVC Ins, PVC Jkt, UL Type SJT

19364 – Portable Cordage, 3 C #14 Str BC, PVC Ins, PVC Jkt, UL Type SJT

Call for Price

Compare
SKU: 19364 Categories: , , , ,

Description

Product Overview

Suitable Applications: Portable cordage for supplying power to appliances and tools

Construction Details

Conductor
Element No. of Elements Size Stranding Material Notes
Conductor(s) 3 14 AWG 41×30 BC – Bare Copper 2.08mm2
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PVC – Polyvinyl Chloride 0.033 in (0.84 mm) 0.141 in (3.58 mm) Light Blue, Brown, Green/Yellow
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 20 AWG (7×28) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.042 in (1.1 mm) 0.402 in (10.2 mm)
Overall Cable Diameter (Nominal): 0.402 in (10.2 mm)

Electrical Characteristics

Electricals
Element Nom. Conductor DCR Max. Current
Conductor(s) 2.76 Ohm/1000ft 15 Amps per conductor @ 30°C
Voltage
UL Voltage Rating
300 V (Type SJT)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
4.0 in (100 mm) 4.0 in (100 mm)
Max. Pull Tension: 172.5 lbs (78.24 kg)
Bulk Cable Weight: 97 lbs/1000ft

Standards and Compliance

NEC / UL Compliance: SJT
AWM Compliance: SJT
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.544 Revision Date: 06-01-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
19364 010250 Black Reel 250 ft 612825127017 C
