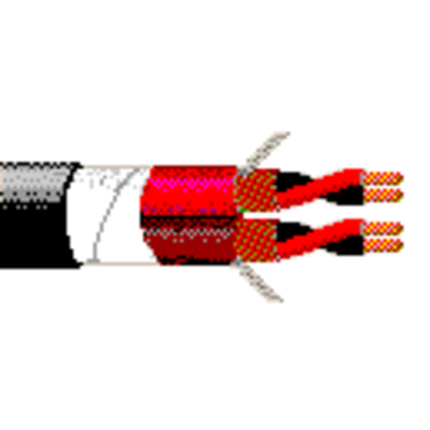

1932A - Audio Snake Cable, #24-32pr, BC, Indiv. Shielded

1932A – Audio Snake Cable, #24-32pr, BC, Indiv. Shielded

Call for Price

Compare
SKU: 1932A Categories: , , , ,

Description

Product Overview

Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 41×40 BC – Bare Copper 0.0225 in 32
Conductor Count: 64
Total Number of Pairs: 32
Insulation
Material Nominal Diameter Nominal Wall Thickness
PP – Polypropylene 0.04 in 0.008 in
Color Chart
Number Color
1 Brown
2 Red
3 Orange
4 Yellow
5 Green
6 Blue
7 Purple
8 Gray
9 White
10 Black
11 Tan
12 Pink
13 Gray/Brown
14 Gray/Red
15 Gray/Orange
16 Gray/Yellow
17 Gray/Green
18 Gray/Blue
19 Gray/Purple
20 Gray/Gray
21 Gray/White
22 Gray/Black
23 Gray/Tan
24 Gray/Pink
25 Blue/Brown
26 Blue/Red
27 Blue/Orange
28 Blue/Yellow
29 Blue/Green
30 Blue/Blue
31 Blue/Purple
32 Blue/Gray
Color Chart 2
Color
Red and Black
Inner Shield
Type Material Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
French Braid Bare Copper (BC) 95% TC – Tinned Copper 0.025 in 24 19×26
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.119 in 0.014 in
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.968 in 0.1 in

Construction and Dimensions

Stranding
Twists
12 twist/ft

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
7.2 Ohm/1000ft 25.5 Ohm/1000ft 25.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
26.1 pF/ft 47.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
60 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Max. Recommended Current [A]
1.05 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 499 lbs/1000ft
Max. Pull Tension: 930 lbs
Min. Bend Radius/Minor Axis: 7.5 in

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1932A B59250 Black, Matte Reel 250 ft 612825126904

History

Update and Revision: Revision Number: 0.350 Revision Date: 01-10-2024
