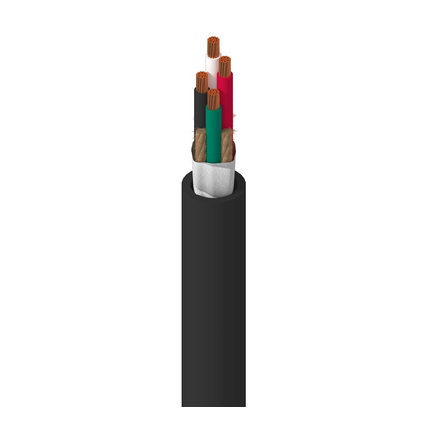

19216 - Portable Cordage, 4 C #12 Str BC, EPDM Ins, CPE Jkt, UL Type SO

19216 – Portable Cordage, 4 C #12 Str BC, EPDM Ins, CPE Jkt, UL Type SO

Call for Price

Compare
SKU: 19216 Categories: , , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 4 12 AWG 65×30 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) EPDM – Ethylene Propylene Diene Monomer 0.052 in (1.3 mm) 0.201 in (5.11 mm) Black, White, Green, Red
Outer Shield
Material
No Shield
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Paper Tape CPE – Chlorinated Polyethylene (Thermoset) 0.102 in (2.59 mm) 0.69 in
Overall Cable Diameter (Nominal): 0.69 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
1.7 Ohm/1000ft 20 Amps per Conductor at 25ºC (15 Amps over 50 ft)
Voltage
UL Voltage Rating
600 V

Mechanical Characteristics

Temperature
UL Temperature Operating
90°C -20°C To +90°C
Bend Radius
Stationary Min. Installation Min.
6.9 in (180 mm) 6.9 in
Max. Pull Tension: 338 lbs (153 kg)
Bulk Cable Weight: 284 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Oil Resistance
NEC / UL Compliance: Article 400, SO
AWM Compliance: SO
CEC / C(UL) Compliance: LL7874
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.385 Revision Date: 05-05-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
19216 010200 Black Reel 200 ft 612825126829 C
