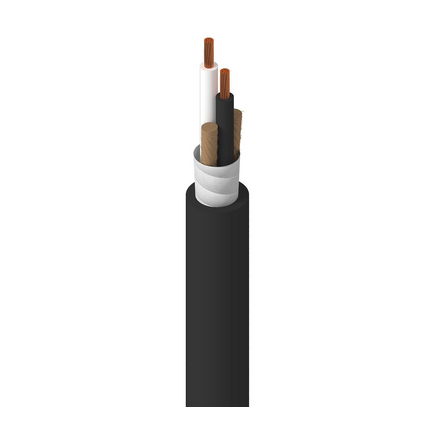

19140 - Portable Cordage, 2 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT

19140 – Portable Cordage, 2 C #18 Str BC, PVC Ins, PVC Jkt, UL Type SVT

Call for Price

Compare
SKU: 19140 Categories: , , , ,

Description

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 2 18 AWG 42×34 BC – Bare Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC – Polyvinyl Chloride 0.018 in (0.46 mm) 0.084 in (2.1 mm) Black, White
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Paper Tape PVC – Polyvinyl Chloride 0.036 in (0.91 mm) 0.243 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Max. Current
6.97 Ohm/1000ft 10 Amps per Conductor at 25ºC (7 Amps over 50 ft)
7 Amps per Conductor at 25ºC (over 50 ft)
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature
60°C
Max. Pull Tension: 42.6 lbs (19.3 kg)
Bulk Cable Weight: 32 lbs/1000ft

Standards and Compliance

Environmental Suitability: Oil Resistance
NEC / UL Compliance: Article 400, SVT
AWM Compliance: SVT
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Overall Cabling Separator Material: Paper Tape

History

Update and Revision: Revision Number: 0.389 Revision Date: 02-15-2024

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
19140 010250 Black Reel 250 ft 612825126706 F
19140 008250 Gray Reel 250 ft 612825126690 F
