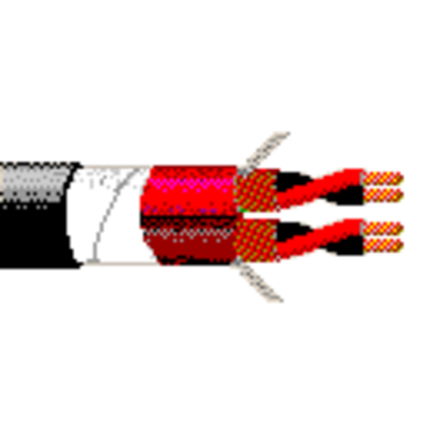

Product Overview
| Suitable Applications: |
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Pairs |
| 24 |
41×40 |
BC – Bare Copper |
0.0225 in |
4 |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PP – Polypropylene |
0.04 in |
0.008 in |
| Number |
Color |
| 1 |
Brown |
| 2 |
Red |
| 3 |
Orange |
| 4 |
Yellow |
| Type |
Material |
Coverage [%] |
Drainwire Material |
Drainwire Diameter |
Drainwire AWG |
Drainwire Position |
| French Braid |
Bare Copper (BC) |
95% |
TC – Tinned Copper |
0.025 in |
24 |
Under French Braid |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.119 in |
0.014 in |
| Material |
Nominal Diameter |
Nominal Wall Thickness |
| PVC – Polyvinyl Chloride |
0.372 in |
0.043 in |
Electrical Characteristics
| Individual Pair Nominal Shield DCR |
Nominal Conductor DCR |
| 7.2 Ohm/1000ft |
25.5 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 26.1 pF/ft |
47.5 pF/ft |
| Nominal Inductance |
| 0.18 µH/ft |
| Nominal Characteristic Impedance |
| 60 Ohm |
| Nominal Velocity of Propagation (VP) [%] |
| 66% |
| Max. Recommended Current [A] |
| 1.05 Amps per Conductor at 25ºC |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Operating Temperature Range: |
-20°C To +60°C |
Mechanical Characteristics
| Bulk Cable Weight: |
73 lbs/1000ft |
| Max. Pull Tension: |
120 lbs |
| Min. Bend Radius/Minor Axis: |
3.75 in |
Standards
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/11/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| IEC Flammability: |
IEC 60332-1-2 |
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 1904A B59250 |
Black, Matte |
Reel |
250 ft |
612825126393 |
| 1904A B59500 |
Black, Matte |
Reel |
500 ft |
612825126409 |
| 1904A B591000 |
Black, Matte |
Reel |
1,000 ft |
612825126386 |
| Footnote: |
C – CRATE REEL PUT-UP. |
History
| Update and Revision: |
Revision Number: 0.434 Revision Date: 01-10-2024 |
