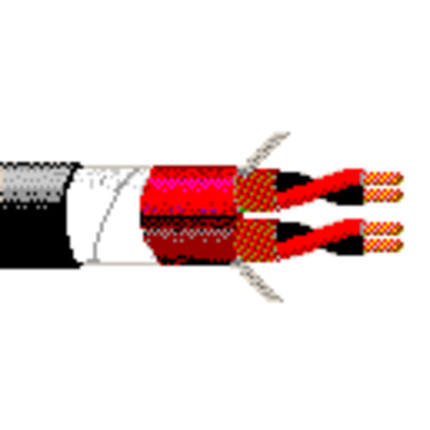

1902A - Audio Snake Cable, #24-2pr, BC, Indiv. Shielded

1902A – Audio Snake Cable, #24-2pr, BC, Indiv. Shielded

Call for Price

Compare
SKU: 1902A Categories: , , , ,

Description

Product Overview

Suitable Applications: Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 41×40 BC – Bare Copper 0.0225 in 2
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Material Nominal Diameter Nominal Wall Thickness
PP – Polypropylene 0.0395 in 0.0085 in
Color Chart
Number Color
1 Brown
2 Red
Inner Shield
Type Material Coverage [%] Drainwire Material Drainwire Diameter Drainwire AWG Drainwire Construction n x D
French Braid Bare Copper (BC) 95% TC – Tinned Copper 0.025 in 24 19×26
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.119 in 0.0135 in
Outer Shield
Material
No Shield
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC – Polyvinyl Chloride 0.33 in 0.0445 in

Electrical Characteristics

Conductor DCR
Individual Pair Nominal Shield DCR Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
7.2 Ohm/1000ft 25.5 Ohm/1000ft 25.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
26.1 pF/ft 47.5 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
60 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
66%
Current
Max. Recommended Current [A]
1.05 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 48 lbs/1000ft
Max. Pull Tension: 58 lbs
Min. Bend Radius/Minor Axis: 3.5 in

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1902A B59250 Black, Matte Reel 250 ft 612825126140
1902A B59500 Black, Matte Reel 500 ft 612825126157
1902A B591000 Black, Matte Reel 1,000 ft 612825126133
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.431 Revision Date: 01-10-2024
