(Part Number: 19029) – CAT5e U/UTP Solid Riser CMR Cable – 1000 FT Pull Box-Gray – Wire and Cable – Vericom

$109.95

Download Spec Sheet

Compare
SKU: 19029-NC Category:
Vericom

Description

Vericom Category 5e Riser Rated Indoor cable supports 10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 155 Mb/s ATM, 622 Mb/s ATM, digital video, broadband/baseband analog video, and Voice over Internet Protocol (VoIP) for commercial or residential applications.

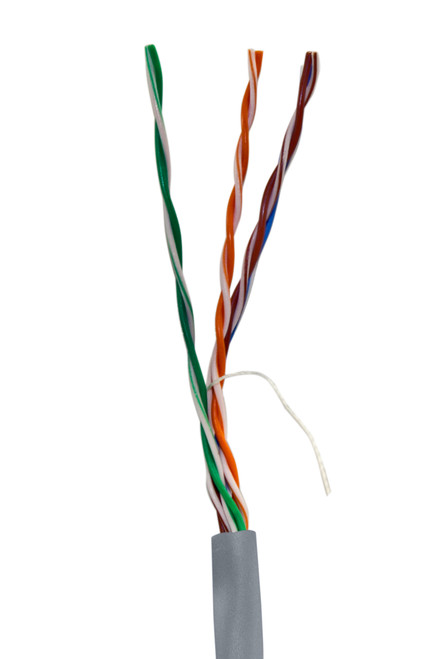

Vericom Category 5e CMR Cables are designed to meet and exceed ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D electrical performance requirements for frequencies up to 100 MHz with test results to 350 MHz. The cable construction utilizes 24 AWG solid conductors insulated with flame retardant PVC in a four twisted pair unshielded configuration rated for CMR.

Features & Benefits

  • Solid bare copper center conductor
  • Conductor Size: 24 AWG
  • 4 Unshielded Differential twisted pairs to reduce crosstalk (U/UTP)
  • Fire retardant CMR jacket for applications where cable is run between floors in non-plenum areas
  • Cable marking starts at 1000ft and displays remaining cable length for future use
  • Length: 1,000 ft.
  • Pull box packaging to ease installation and storage
  • Pallet Quantity: 45 units

Standards Compliance

  • Cable meets ANSI/TIA-568-C.2 for compatibility with all standard compliant components
  • ISO/IEC 11801
  • IEC 61156-5
  • UL Rated Temperature: 75° C
  • UL 1666 (CMR)
  • UL 444 and CSA-C22.2 NO. 214
  • RoHS Compliant
  • Supports IEEE 802.3af/802.3at

Cable Design:
Ethernet

Cable Diameter:
4.8

Cable Type:
CAT 5e

Certifications:
TIA/EIA 568-C.2, ISO/IEC 11801

Conductor Diameter [mm]:
0.51

Conductor Material:
Solid Copper

Conductor Size AWG:
24

Color:
Gray

Compliance:
RoHS, UL Listed, ETL Listed

Freight Class:
50

Height [in]:
10

Length [in]:
10

Packaging Type:
Pull Box

Width [in]:
10

Frequency Range MHz:
1-100, Extended to 350

Insulating Diameter [mm]:
0.88

Insulating Material:
HDPE

Insulation Average Thickness [mm]:
0.2

Jacket Average:
0.5

Jacket Material:
PVC

Jacket type:
Riser Rated (CMR)

Length [ft]:
1000

Length [m]:
304.8

Minimum Bending Radius [mm]:
48

Number of Conductor Pairs:
4

Number of Insulations:
4 Pair

Overall Temperature Rating (Degrees Celcius):
75

Package Type:
Pull Box

Ripcord:
Nylon

Shield Designation:
U/UTP

Shielding:
Unshielded

Shipping Method:
Parcel

Unit of Measure:
EA.

Units Per Package:
1

Weight [lb]:
15.000000
