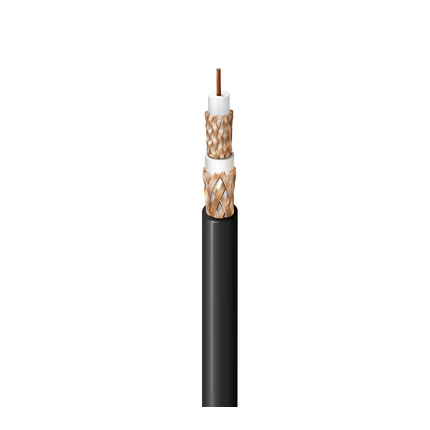

1856A - Triax, RG59, 20 AWG Solid BC, Double 95% BC Braids, Belflex® Jkt

1856A – Triax, RG59, 20 AWG Solid BC, Double 95% BC Braids, Belflex® Jkt

Call for Price

Compare
SKU: 1856A Categories: , , ,

Description

Product Overview

Suitable Applications: Analog Video; Interconnect camera to CCU (camera control unit)

Construction Details

RG Type: 59
Conductor
Size Stranding Nom. Diameter Material
20 AWG Solid 0.032 in BC – Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.145 in (3.68 mm) White
Inner Shield
Layer Shield Type Material Coverage
1 Braid Bare Copper (BC) 95%
Inner Jacket
Material Nom. Diameter
PE – Polyethylene 0.216 in (5.49 mm)
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Bare Copper (BC) 95%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.360 in (9.14 mm)
Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Return Loss
5 – 850 MHz 21 dB
850 – 3000 MHz 15 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.30 dB/100ft
3.6 MHz 0.60 dB/100ft
10 MHz 0.80 dB/100ft
71.5 MHz 2.20 dB/100ft
135 MHz 3.00 dB/100ft
270 MHz 4.20 dB/100ft
360 MHz 4.80 dB/100ft
540 MHz 5.90 dB/100ft
720 MHz 6.90 dB/100ft
750 MHz 7.10 dB/100ft
1000 MHz 8.80 dB/100ft
1500 MHz 12.00 dB/100ft
2250 MHz 16.40 dB/100ft
3000 MHz 20.40 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
10.1 Ohm/1000ft 2.5 Ohm/1000ft (8.2 Ohm/km) 1.6 Ohm/1000ft (5.2 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 83%
Voltage
Voltage Rating
300 V

Mechanical Characteristics

Temperature
Operating
-50°C to +80°C
Bend Radius
Installation Min.
3.6 in (91 mm)
Max. Pull Tension: 124 lbs (56.2 kg)
Bulk Cable Weight: 76 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Aerial – When supported by messenger wire
Sustainability: CA Prop 65
CPR Compliance: CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.478 Revision Date: 04-24-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1856A B591000 Black, Matte Reel 1,000 ft 612825356899 C
1856A B594000 Black, Matte Reel 4,000 ft 612825352242
1856A 0061000 Blue, Light Reel 1,000 ft 612825356813 C
1856A 0051000 Green, Dark Reel 1,000 ft 612825356868 C
1856A 0021000 Red Reel 1,000 ft 612825356882 C
1856A 0041000 Yellow Reel 1,000 ft 612825356875 C
