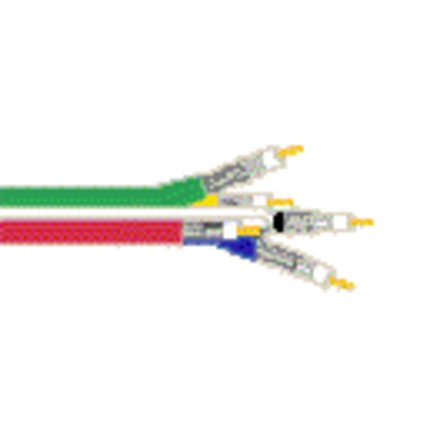

1855S6 - VideoFLEX® Snake, Banana Peel, Mini, #23-6 Coax, CMR

1855S6 – VideoFLEX® Snake, Banana Peel, Mini, #23-6 Coax, CMR

Call for Price

Compare
SKU: 1855S6 Categories: , ,

Description

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Coax
23 Solid BC – Bare Copper 0.023 in 6
Conductor Count: 6
Insulation
Material Nominal Diameter
PE – Polyethylene (Foam) 0.102 in
Table Notes: Gas Injected
Color Chart
Number Color
1 Red
2 Green
3 Blue
4 White
5 Yellow
6 Brown
Inner Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Inner Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.159 in
Outer Jacket
Material Nominal Diameter
Banana Peel (No Overall Jacket) 0.477 in

Construction and Dimensions

Cabling
Filler
Bonded Spline

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Outer Conductor DCR
20.1 Ohm/1000ft 20.1 Ohm/1000ft 7.6 Ohm/1000ft 7.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.5 pF/ft
Inductance
Nominal Inductance
0.106 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss (RL)
Frequency [MHz] Minimum Return (RL)
5-625 MHz 20 dB
625-675 MHz 15 dB
675-850 MHz 20 dB
850-4500 MHz 15 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.4 dB/100ft
3.6 MHz 0.8 dB/100ft
10 MHz 1.2 dB/100ft
71.5 MHz 3.1 dB/100ft
135 MHz 3.8 dB/100ft
270 MHz 5.4 dB/100ft
360 MHz 6.2 dB/100ft
540 MHz 7.7 dB/100ft
720 MHz 9.1 dB/100ft
750 MHz 9.5 dB/100ft
1000 MHz 10.5 dB/100ft
1500 MHz 13 dB/100ft
2500 MHz 16.9 dB/100ft
3000 MHz 18.5 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 83%
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 75°C
UL Temp Rating: 60°C
Operating Temperature Range: -35°C To +75°C

Mechanical Characteristics

Bulk Cable Weight: 114 lbs/1000ft
Max. Pull Tension: 216 lbs
Min. Bend Radius/Minor Axis: 6 in

Standards

NEC/(UL) Compliance: CMR
CEC/C(UL) Compliance: CMG
CPR Euroclass: Eca
RG Type: Mini 59

Applicable Environmental and Other Programs

Environmental Space: Indoor – Riser
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Indoor: Yes
Suitability – Outdoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1666 Vertical Shaft
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1855S6 000500 None Reel 500 ft 612825356905
1855S6 0001000 None Reel 1,000 ft 612825356912
Footnote: C – CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.422 Revision Date: 12-19-2022
