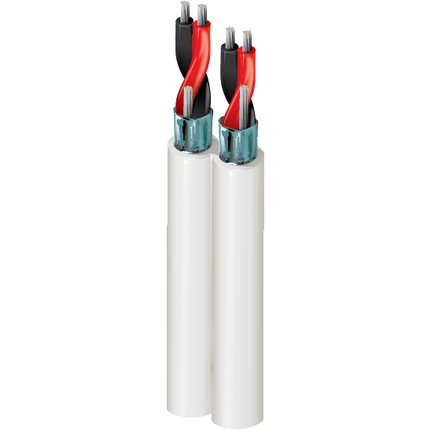

Product Overview
| Suitable Applications: |
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Pairs |
| 24 |
7×32 |
TC – Tinned Copper |
0.024 in |
2 |
| Material |
Material Trade Name |
Nominal Diameter |
| PE – Polyethylene (Foam) |
Datalene® |
0.68 in |
| Number |
Color |
| 1 |
Red & Black |
| 2 |
Red & Black |
| Type |
Material |
Material Trade Name |
Coverage [%] |
Drainwire Diameter |
Drainwire AWG |
Drainwire Construction n x D |
| Tape |
Bi-Laminate (Alum+Poly) |
Beldfoil® |
100% |
0.024 in |
24 |
7×32 |
| Table Notes: |
Indiv. Foil tapes bonded to inner jacket |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
.180 x .360 in |
Electrical Characteristics
| Nominal Conductor DCR |
| 23.7 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor |
Nom. Capacitance Conductor to Other Conductor to Shield |
| 12 pF/ft |
26 pF/ft |
| Nominal Inductance |
| 0.18 µH/ft |
| Nominal Characteristic Impedance |
| 110 Ohm |
High Frequency (Nominal/Typical)
| Nom. Insertion Loss |
| 0.69 dB/100ft |
| 0.93 dB/100ft |
| 0.96 dB/100ft |
| 1.07 dB/100ft |
| 1.19 dB/100ft |
| 1.21 dB/100ft |
| 1.31 dB/100ft |
| 1.41 dB/100ft |
| 1.45 dB/100ft |
| 1.57 dB/100ft |
| 1.76 dB/100ft |
| 1.83 dB/100ft |
| 2.01 dB/100ft |
| 2.24 dB/100ft |
| 2.3 dB/100ft |
| 3.08 dB/100ft |
| Nominal Velocity of Propagation (VP) [%] |
| 76% |
| Frequency [MHz] |
| 0.384 MHz |
| 0.7056 MHz |
| 0.768 MHz |
| 1.024 MHz |
| 1.4112 MHz |
| 1.536 MHz |
| 2.048 MHz |
| 2.8224 MHz |
| 3.072 MHz |
| 4.096 MHz |
| 5.6448 MHz |
| 6.144 MHz |
| 8.192 MHz |
| 11.2896 MHz |
| 12.288 MHz |
| 24.576 MHz |
| Max. Recommended Current [A] |
| 2.75 Amps per Conductor at 25ºC |
| UL Voltage Rating |
| 300 V RMS |
Temperature Range
| Operating Temperature Range: |
-30°C To +60°C |
Mechanical Characteristics
| Bulk Cable Weight: |
33 lbs/1000ft |
| Max. Pull Tension: |
33 lbs |
| Min. Bend Radius/Minor Axis: |
2 in |
Standards
| CEC/C(UL) Compliance: |
CMR |
| Other Specification: |
AES/EBU |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Hazardous Locations: |
No |
| Suitability – Indoor: |
Yes |
| Suitability – Outdoor: |
No |
| Suitability – Sunlight Resistance: |
No |
Flammability, LS0H, Toxicity Testing
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 1802B 010N1000 |
Black |
Reel w/Small Barrel |
1,000 ft |
612825123071 |
| 1802B Z4B5000 |
Violet |
Reel |
5,000 ft |
612825430018 |
| 1802B Z4B500 |
Violet Z4B |
Reel |
500 ft |
612825123064 |
| 1802B Z4B1000 |
Violet Z4B |
Reel |
1,000 ft |
612825123057 |
| 1802B Z4BU1000 |
Violet Z4B |
UnReel |
1,000 ft |
612825123040 |
| 1802B Z4BN1000 |
Vio Z4B |
Reel w/Small Barrel |
1,000 ft |
612825123033 |
| Footnote: |
C – CRATE REEL PUT-UP. |
Product Notes
| Notes: |
For cross-connect use with 1803F (et al.) Digital Audio Snake Cables. The jacket and shield are bonded so both can be removed on automatic stripping equipment. |
History
| Update and Revision: |
Revision Number: 0.479 Revision Date: 01-10-2024 |
