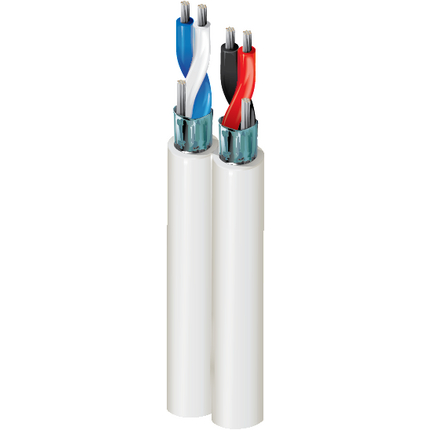

1801BD - Audio Snake Cable, 2 Pair 24 AWG, TC, Individually Shielded, CMP

1801BD – Audio Snake Cable, 2 Pair 24 AWG, TC, Individually Shielded, CMP

Call for Price

Compare
SKU: 1801BD Categories: , , , ,

Description

Product Overview

Suitable Applications: Recording Studio, Radio Broadcast, Sports Stadium, Nurse Call

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Nominal Diameter No. of Pairs
24 7×32 TC – Tinned Copper 0.024 in 2
Conductor Count: 4
Insulation
Material Material Trade Name Nominal Diameter
FEP – Fluorinated Ethylene Propylene (Foam) Teflon® 0.066 in
Color Chart
Number Color
1 Red & Black
2 White & Blue
Inner Shield
Type Material Material Trade Name Drainwire Material Drainwire AWG
Tape Bi-Laminate (Alum+Poly) Beldfoil® TC – Tinned Copper 24
Outer Shield
Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Bi-Laminate (Alum+Poly) 100% TC – Tinned Copper 24 7×32
Outer Jacket
Material Nominal Diameter
PVC – Polyvinyl Chloride 0.165 x 0.345 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
23.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
12 pF/ft 26 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Impedance
Nominal Characteristic Impedance
110 Ohm
High Frequency (Nominal/Typical)
Nom. Insertion Loss
0.82 dB/100ft
1.01 dB/100ft
1.02 dB/100ft
1.08 dB/100ft
1.15 dB/100ft
1.16 dB/100ft
1.23 dB/100ft
1.34 dB/100ft
1.38 dB/100ft
1.58 dB/100ft
1.79 dB/100ft
1.85 dB/100ft
2.05 dB/100ft
2.34 dB/100ft
2.43 dB/100ft
3.33 dB/100ft
Delay
Nominal Velocity of Propagation (VP) [%]
78%
High Frequency
Frequency [MHz]
0.384 MHz
0.7056 MHz
0.768 MHz
1.024 MHz
1.4112 MHz
1.536 MHz
2.048 MHz
2.8224 MHz
3.072 MHz
4.096 MHz
5.6448 MHz
6.144 MHz
8.192 MHz
11.2896 MHz
12.288 MHz
24.576 MHz
Current
Max. Recommended Current [A]
2.9 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temperature Range: -20°C To +60°C

Mechanical Characteristics

UV Resistance: No
Bulk Cable Weight: 26 lbs/1000ft
Max. Pull Tension: 33 lbs
Min. Bend Radius/Minor Axis: 1.75 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
Other Specification: AES/EBU

Applicable Environmental and Other Programs

Environmental Space: Indoor – Plenum
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability – Aerial: No
Suitability – Burial: No
Suitability – Hazardous Locations: No
Suitability – Indoor: Yes
Suitability – Outdoor: No
Suitability – Sunlight Resistance: No

Flammability, LS0H, Toxicity Testing

UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Related Part Numbers

Variants
Item # Color Put-Up Type Length UPC
1801BD 8771000 Natural Reel 1,000 ft 612825122982
1801BD Z4B1000 Violet Z4B Reel 1,000 ft 612825122975

Product Notes

Notes: Teflon« is a registered trademark of Chemours and is used under license by Belden, Inc.

History

Update and Revision: Revision Number: 0.374 Revision Date: 12-22-2023
