Description
Vericom FPLP unshielded fire alarm cable supports fire and signal protection devices and security systems with integrated fire alarm circuits. This cable is for use with Power-Limited Systems in multi-story commercial building or residential applications requiring a plenum level of fire protection in air-handling spaces.

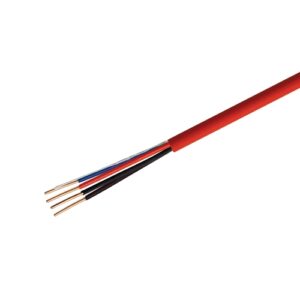

This 18 AWG, 4-conductor fire alarm cable is composed of four wires (Black, Red, Brown, Blue) inside an FPLP-rated red jacket. This cable is approved for 300 volts and has a temperature range of -4°F to 167°F. Our fire alarm cables are FPLP-rated and meet UL 1424, making them suitable for commercial installation in plenum air-handling spaces, such as overhead spaces. For more details on NEC guidelines, please reference section 760.154(A) of the National Electrical Code ANSI/NFPA 70.
Features & Benefits
- FPLP-rated jacket for commercial installations in plenum air-handling spaces
- Applications: Fire protection devices, signal detection, security systems with integrated fire alarm circuits, and more
- Jacket Color: Red
- Conductors: 18 Gauge, 4-Conductor Solid, with Rip Cord
- Bare copper conductors
- Temperature Range: -4°F to 167°F
- 300V operation
- Package: 1000 ft. Wooden Spool
Standards Compliance
- UL 1424, Power-Limited Fire Alarm Circuit Cable (FPLP Listed)
- UL 13, Power-Limited Circuit Cable
- UL Listed Type FPLP/CL3P/CMP
- NEC Articles 725, 760, and 800
- RoHS Compliant
Additional information
| Weight | 31.6 lbs |
|---|
