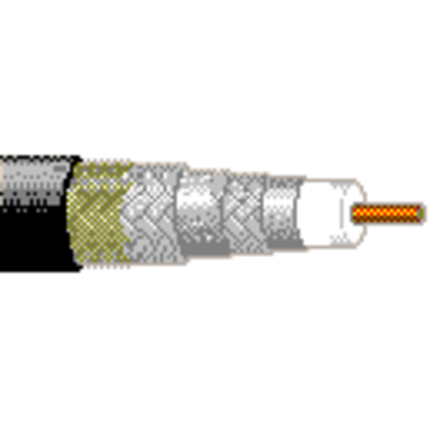

Physical Characteristics (Overall)
| AWG |
Stranding |
Material |
Nominal Diameter |
No. of Coax |
| 14 |
Solid |
BCCS – Bare Copper Covered Steel |
0.064 in |
1 |
| Material |
Nominal Diameter |
| PE – Polyethylene (Foam) |
0.28 in |
| Table Notes: |
Gas Injected |
| Type |
Layer |
Material |
Material Trade Name |
Coverage [%] |
| Tape |
1 |
Tri-Laminate (Alum+Poly+Alum) |
Duofoil® |
100% |
| Braid |
2 |
Aluminum |
|
60% |
| Tape |
3 |
Tri-Laminate (Alum+Poly+Alum) |
Duofoil® |
100% |
| Braid |
4 |
Aluminum |
|
40% |
| Material |
Nominal Diameter |
| PVC – Polyvinyl Chloride |
0.407 in |
Electrical Characteristics
| Nominal Conductor DCR |
Nominal Outer Shield DCR |
Outer Conductor DCR |
| 11 Ohm/1000ft |
3 Ohm/1000ft |
3 Ohm/1000ft |
| Nom. Capacitance Conductor to Shield |
| 16.2 pF/ft |
| Nominal Inductance |
| 0.097 µH/ft |
| Nominal Characteristic Impedance |
Nominal Characteristic Tolerance |
| 75 Ohm |
± 3 Ohm |
| Frequency [MHz] |
Min. Structural Return Loss (SRL) |
| 5 – 1000 MHz |
20 dB |
| Nominal Delay |
Nominal Velocity of Propagation (VP) [%] |
| 1.2 ns/ft |
83% |
| Frequency [MHz] |
Max. Insertion Loss (Attenuation) |
| 5 MHz |
0.38 dB/100ft |
| 55 MHz |
0.96 dB/100ft |
| 211 MHz |
1.9 dB/100ft |
| 270 MHz |
2.13 dB/100ft |
| 300 MHz |
2.25 dB/100ft |
| 350 MHz |
2.42 dB/100ft |
| 400 MHz |
2.6 dB/100ft |
| 450 MHz |
2.75 dB/100ft |
| 550 MHz |
3.04 dB/100ft |
| 750 MHz |
3.65 dB/100ft |
| 870 MHz |
4.06 dB/100ft |
| 1000 MHz |
4.35 dB/100ft |
| Non-UL Voltage Rating |
UL Voltage Rating |
| 300 V RMS |
300 V RMS |
Temperature Range
| Operating Temperature Range: |
-40°C To +80°C |
Mechanical Characteristics
| Bulk Cable Weight: |
59 lbs/1000ft |
| Max. Pull Tension: |
308 lbs |
| Min. Bend Radius/Minor Axis: |
4.5 in |
Standards
| NEC/(UL) Compliance: |
CATVR, CMR |
| CEC/C(UL) Compliance: |
CMG |
Applicable Environmental and Other Programs
| Environmental Space: |
Indoor – Riser |
| EU Directive 2000/53/EC (ELV): |
Yes |
| EU Directive 2003/96/EC (BFR): |
Yes |
| EU Directive 2011/65/EU (RoHS 2): |
Yes |
| EU Directive 2012/19/EU (WEEE): |
Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): |
Yes |
| EU Directive Compliance: |
EU Directive 2003/11/EC (BFR) |
| MII Order #39 (China RoHS): |
Yes |
Suitability
| Suitability – Indoor: |
Yes |
Flammability, LS0H, Toxicity Testing
| UL Flammability: |
UL1666 Riser |
| UL voltage rating: |
300 V RMS |
Plenum/Non-Plenum
Related Part Numbers
| Item # |
Color |
Put-Up Type |
Length |
UPC |
| 1617R 0101000 |
Black |
Reel |
1,000 ft |
612825119272 |
| Footnote: |
C – CRATE REEL PUT-UP. |
History
| Update and Revision: |
Revision Number: 0.205 Revision Date: 04-14-2023 |
