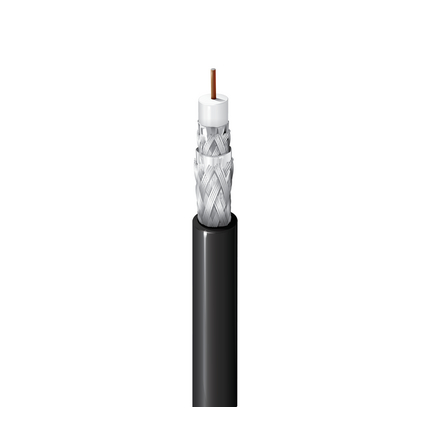

1617AP - Broadband Coax, Series 11, 14 AWG Solid BCCS, Quad Shield, PVDF Jkt, CMP

1617AP – Broadband Coax, Series 11, 14 AWG Solid BCCS, Quad Shield, PVDF Jkt, CMP

Call for Price

Compare
SKU: 1617AP Categories: , , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Direct Broadcast Satellite (DBS), Over-The-Air (OTA) antennas

Construction Details

Series Type: 11
Conductor
Size Stranding Nom. Diameter Material
14 AWG Solid 0.064 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
FEP – Fluorinated Ethylene Propylene (Foam) 0.274 in (6.96 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
3 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
4 Braid Aluminum 40%
Outer Jacket
Material Nom. Diameter
PVDF – Polyvinylidene Fluoride 0.372 in (9.45 mm)
Overall Cable Diameter (Nominal): 0.372 in (9.45 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5 – 1000 MHz 20 dB
1000 – 2250 MHz 15 dB
Attenuation
Frequency Max. Attenuation
5 MHz 0.38 dB/100ft
55 MHz 0.96 dB/100ft
211 MHz 1.90 dB/100ft
240 MHz 2.43 dB/100ft
270 MHz 2.59 dB/100ft
300 MHz 2.75 dB/100ft
325 MHz 2.92 dB/100ft
350 MHz 3.08 dB/100ft
400 MHz 3.34 dB/100ft
450 MHz 3.64 dB/100ft
500 MHz 3.92 dB/100ft
550 MHz 4.19 dB/100ft
600 MHz 4.48 dB/100ft
750 MHz 5.31 dB/100ft
870 MHz 5.86 dB/100ft
1000 MHz 6.53 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
12 Ohm/1000ft 3 Ohm/1000ft (9.8 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL Temperature Operating
150°C -20°C to +150°C
Bend Radius
Installation Min.
3.7 in (94 mm)
Max. Pull Tension: 308 lbs (140 kg)
Bulk Cable Weight: 63 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 1617A, 7999A

History

Update and Revision: Revision Number: 0.359 Revision Date: 11-27-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
1617AP 0101000 Black Reel 1,000 ft 612825119265
