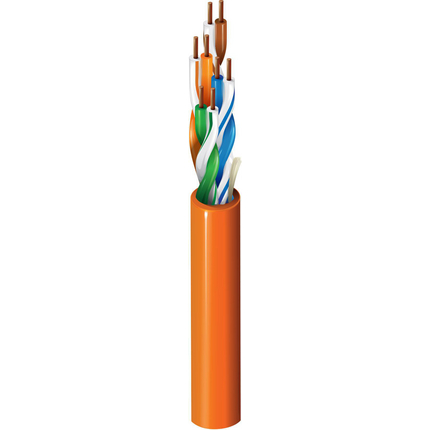

1592A - Category 5e Patch Cable, 4 Pair, U/UTP, CM

1592A – Category 5e Patch Cable, 4 Pair, U/UTP, CM

Call for Price

Compare
SKU: 1592A Categories: , , ,

Description

Product Overview

Suitable Applications: Premise Patch Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE

Construction Details

Conductor
Size Stranding Material No. of Pairs
24 AWG 7×32 BC – Bare Copper 4
Insulation
Material Color Code
PO – Polyolefin White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Jacket
Material Nom. Diameter Ripcord
PVC – Polyvinyl Chloride 0.213 in (5.41 mm) No
Overall Cable Diameter (Nominal): 0.213 in (5.41 mm)

Electrical Characteristics

Electricals
Max. Conductor DCR Max. Capacitance Unbalance
93.8 Ohm/km (28.6 Ohm/1000ft) 330 pF/100m
Delay
Frequency Max. Delay Max. Delay Skew Nom. Velocity of Prop. Typical Delay Skew
100 MHz 537.6 ns/100m 45 ns/100m 69% 37 ns/100m
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. ACRF (ELFEXT) [dB] Min. PSACRF (PSELFEXT) [dB] Min. RL (Return Loss) [dB] Max./Min. Input Impedance (unFitted) [Ohm] Max./Min. Fitted Impedance [Ohm]
1 2.4 dB/100m 65.3 62.3 63.8 60.8 20.0 100 ± 15 100 ± 15
4 4.9 dB/100m 56.3 53.3 51.7 48.7 23.0 100 ± 15 100 ± 15
8 6.9 dB/100m 51.8 48.8 45.7 42.7 24.5 100 ± 15 100 ± 15
10 7.8 dB/100m 50.3 47.3 43.8 40.8 25.0 100 ± 15 100 ± 15
16 9.9 dB/100m 47.3 44.2 39.7 36.7 25.0 100 ± 15 100 ± 15
20 11.1 dB/100m 45.8 42.8 37.7 34.7 25.0 100 ± 15 100 ± 15
25 12.5 dB/100m 44.3 41.3 35.8 32.8 24.3 100 ± 15 100 ± 15
31.25 14.1 dB/100m 42.9 39.9 33.9 30.9 23.6 100 ± 15 100 ± 15
62.5 20.4 dB/100m 38.4 35.4 27.8 24.8 21.5 100 ± 15 100 ± 15
100 26.4 dB/100m 35.3 32.3 23.8 20.8 20.1 100 ± 15 100 ± 15
155 33.7 dB/100m 32.5 29.4 19.9 16.9 15.8 100 ± 25 100 ± 15
200 38.9 dB/100m 30.8 27.8 17.7 14.7 15.0 100 ± 25 100 ± 15
Voltage
UL Voltage Rating
300 V (CM)

Mechanical Characteristics

Temperature
UL Temperature Operating Installation Storage
75°C -20°C To +75°C 0°C To +50°C -20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1.0 in (25 mm) 2.25 in (57.2 mm)
Max. Pull Tension: 25 lbs (11 kg)
Bulk Cable Weight: 22 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum), Indoor
Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
Flammability / Reaction to Fire: UL 1685 (UL Loading-Limited Smoke)
NEC / UL Compliance: Article 800, CM
CEC / C(UL) Compliance: CM
ICEA Compliance: S-90-661
IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
NEMA Compliance: NEMA WC-63.1
Data Category: Category 5e
TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
Third Party Performance Verification: Category 5e Patch
ISO/IEC Compliance: ISO/IEC 11801-1, IEC 61156-6
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
APAC Compliance: China RoHS II (GB/T 26572-2011)

Product Notes

Notes: Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Print Includes Descending Footage Markings.

History

Update and Revision: Revision Number: 0.549 Revision Date: 12-12-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1592A 0101000 Black Reel 1,000 ft 612825118749 C
1592A 010U1000 Black UnReel 1,000 ft 612825118732
1592A 0061000 Blue Reel 1,000 ft 612825118688 C
1592A 006U1000 Blue UnReel 1,000 ft 612825118671
1592A F2V1000 Gray Reel 1,000 ft 612825118589
1592A F2VU1000 Gray UnReel 1,000 ft 612825118572
1592A 0051000 Green Reel 1,000 ft 612825118664 C
1592A 005U1000 Green UnReel 1,000 ft 612825118657
1592A 0031000 Orange Reel 1,000 ft 612825118626 C
1592A 003U1000 Orange UnReel 1,000 ft 612825118619
1592A 0071000 Purple Reel 1,000 ft 612825118701 C
1592A 007U1000 Purple UnReel 1,000 ft 612825118695
1592A 0021000 Red Reel 1,000 ft 612825118602 C
1592A 002U1000 Red UnReel 1,000 ft 612825118596
1592A 0091000 White Reel 1,000 ft 612825118725 C
1592A 009U1000 White UnReel 1,000 ft 612825118718
1592A 0041000 Yellow Reel 1,000 ft 612825118640
1592A 004U1000 Yellow UnReel 1,000 ft 612825118633
