Description
Product Overview
| Suitable Applications: | For RISC Systems where energy efficiency is Key |

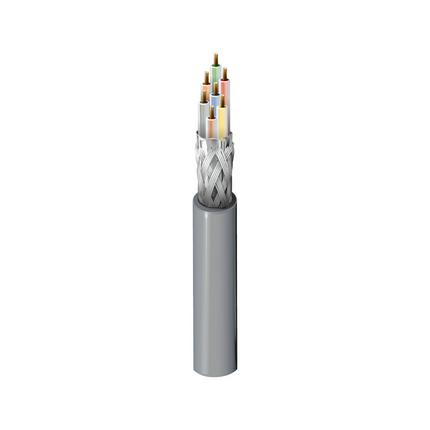

Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 7 | 28 AWG | 7×36 | BC – Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP/PE – Polypropylene/Polyethylene | 0.01 in (0.25 mm) | 0.035 in mm | IBM RISC 6000 |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 28 AWG (7×36) TC |
| Braid | Tinned Copper (TC) | 67% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC – Polyvinyl Chloride | 0.019 in (0.48 mm) | 0.19 in |
| Overall Cable Diameter (Nominal): | 0.19 in |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 66.6 Ohm/1000ft | 12.5 pF/ft (41.0 pF/m) | 23 pF/ft (75 pF/m) | 0.9 Amps per Conductor at 25ºC |
Voltage
| UL Voltage Rating |
|---|
| 300 V |
Mechanical Characteristics
Temperature
| UL Temperature |
|---|
| 60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.9 in (48 mm) | 1.9 in |
| Max. Pull Tension: | 14.7 lbs (6.67 kg) |
| Bulk Cable Weight: | 19 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | UL1685 UL Loading |
| NEC / UL Compliance: | Article 725, CL2 |
| European Directive Compliance: | EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | IBM Part No. XX, YY Cable, RJ-45 compatible |
Product Notes
| Notes: | Patent # 5,220,130. Single conductors are dual insulated. Outer layer of insulation must be stripped off before attaching modular connectors. |
History
| Update and Revision: | Revision Number: 0.340 Revision Date: 01-10-2024 |
Part Numbers
Variants
| Item # | Color | UPC | Footnote |
|---|---|---|---|
| 1540A 0081000 | Gray | 612825117643 | C |
