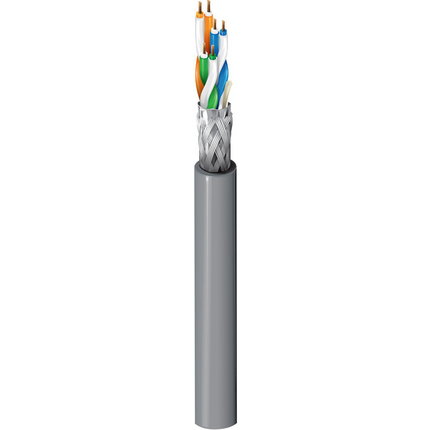

1538A - RISC 6000, #28-3pr, BC, PO, O/A Foil+Braid, PVC Jkt, CL2, 120?

1538A – RISC 6000, #28-3pr, BC, PO, O/A Foil+Braid, PVC Jkt, CL2, 120?

Call for Price

Compare
SKU: 1538A Categories: , , ,

Description

Product Overview

Suitable Applications: For RISC Systems where energy efficiency is Key

Construction Details

Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 28 AWG 7×36 BC – Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Pair(s) PP – Polypropylene 0.01 in (0.25 mm) 0.035 in (0.89 mm) White & Blue, White & Orange, White & Green
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 28 AWG (7×36) TC
Braid Tinned Copper (TC) 65%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC – Polyvinyl Chloride 0.02 in (0.51 mm) 0.230 in
Overall Cable Diameter (Nominal): 0.230 in

Electrical Characteristics

Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
70.6 Ohm/1000ft 12 pF/ft (39 pF/m) 21.5 pF/ft (70.5 pF/m) 120 Ohm 0.7 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
2.30 in (58.4 mm) 2.30 in
Max. Pull Tension: 33.9 lbs (15.4 kg)
Bulk Cable Weight: 22 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Indoor
Flammability / Reaction to Fire: UL1685 UL Loading
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: Article 725, CL2
European Directive Compliance: EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): IBM Part No. N Cable, RJ-45 compatible

Product Notes

Notes: US Patent # 5,220,130. Single conductors are dually insulated. The outer layer of insulation must be stripped off before attaching modular connectors.

History

Update and Revision: Revision Number: 0.425 Revision Date: 01-10-2024

Part Numbers

Variants
Item # Color UPC Footnote
1538A 0081000 Gray 612825117612 C
1538A 008U1000 Gray 612825117605
