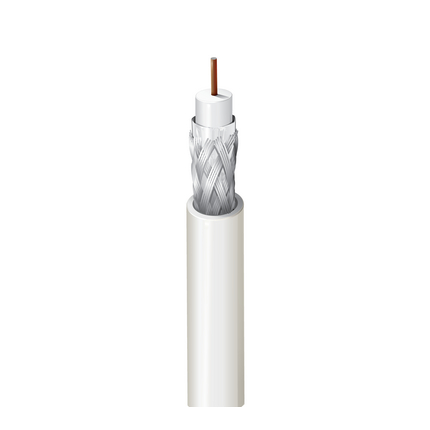

1530AP - Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 90% AL Braid, Flamarrest® Jkt, CMP

1530AP – Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 90% AL Braid, Flamarrest® Jkt, CMP

Call for Price

Compare
SKU: 1530AP Categories: , , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Construction Details

Series Type: 6
Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
FEP – Fluorinated Ethylene Propylene (Foam) 0.170 in (4.32 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 90%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.235 in (5.97 mm)
Overall Cable Diameter (Nominal): 0.235 in (5.97 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5 – 1000 MHz 20 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.3 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.6 dB/100ft
100 MHz 2.1 dB/100ft
200 MHz 2.9 dB/100ft
400 MHz 4.3 dB/100ft
700 MHz 6.1 dB/100ft
750 MHz 6.4 dB/100ft
900 MHz 7.1 dB/100ft
1000 MHz 8.2 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
28 Ohm/1000ft 5 Ohm/1000ft (16 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
Operating
-20°C to +75°C
Bend Radius
Installation Min.
2.4 in (61 mm)
Max. Pull Tension: 162 lbs (73.5 kg)
Bulk Cable Weight: 27 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Plenum, Indoor
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 1530A

History

Update and Revision: Revision Number: 0.474 Revision Date: 04-13-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC Footnote
1530AP 8771000 Natural Reel 1,000 ft 612825117254 C
