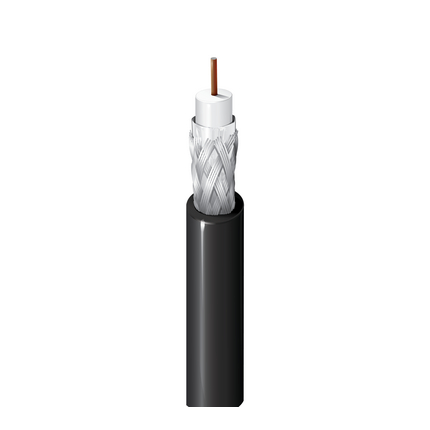

1523R - Broadband Coax, Series 11, 14 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CMR

1523R – Broadband Coax, Series 11, 14 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CMR

Call for Price

Compare
SKU: 1523R Categories: , , ,

Description

Product Overview

Suitable Applications: Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas

Construction Details

Series Type: 11
Conductor
Size Stranding Nom. Diameter Material
14 AWG Solid 0.064 in BCCS – Bare Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
PE – Polyethylene (Foam) 0.280 in (7.11 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Aluminum 60%
Outer Jacket
Material Nom. Diameter
PVC – Polyvinyl Chloride 0.400 in (10.2 mm)
Overall Cable Diameter (Nominal): 0.400 in (10.2 mm)

Electrical Characteristics

Return Loss (RL)
Frequency Min. Structural Return Loss
5 – 1000 MHz 20 dB
Attenuation
Frequency Max. Attenuation
5 MHz 0.38 dB/100ft
55 MHz 0.96 dB/100ft
211 MHz 1.90 dB/100ft
250 MHz 2.05 dB/100ft
270 MHz 2.13 dB/100ft
300 MHz 2.25 dB/100ft
330 MHz 2.35 dB/100ft
350 MHz 2.42 dB/100ft
400 MHz 2.47 dB/100ft
450 MHz 2.75 dB/100ft
500 MHz 2.90 dB/100ft
550 MHz 3.04 dB/100ft
600 MHz 3.18 dB/100ft
750 MHz 3.65 dB/100ft
870 MHz 4.06 dB/100ft
1000 MHz 4.35 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance
Cond-to-Shield		 Nom. Characteristic Impedance Nom. Velocity of Prop.
12 Ohm/1000ft 4.1 Ohm/1000ft (13 Ohm/km) 16.3 pF/ft (53.5 pF/m) 75 Ohm 83%
Voltage
UL Voltage Rating
300 V (CMR, CMG)

Mechanical Characteristics

Temperature
UL Temperature Operating
60°C -30°C to +80°C
Bend Radius
Installation Min.
4.0 in (100 mm)
Max. Pull Tension: 260 lbs (120 kg)
Bulk Cable Weight: 60 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor – Riser, Indoor, Aerial – Black only, When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: UL1666 Vertical Riser
NEC / UL Compliance: CMR, CATVR
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Other Standard Compliance(s): ANSI/SCTE 74

History

Update and Revision: Revision Number: 0.481 Revision Date: 04-14-2023

Part Numbers

Variants
Item # Color Putup Type Length UPC
1523R 010500 Black Reel 500 ft 612825117124
1523R 0101000 Black Reel 1,000 ft 612825117117
