1509ECH - AUDIO ANALOG 2 PAIR 24AWG, BELDFOIL, LSZH-C

1509ECH – AUDIO ANALOG 2 PAIR 24AWG, BELDFOIL, LSZH-C

Call for Price

Compare
SKU: 1509ECH Categories: , , , ,

Description

Product Overview

Suitable Applications: 2-pair 24AWG halogen-free multi-core cable; For analogue audio

Physical Characteristics (Overall)

Conductor
AWG Stranding Material Construction n x D
24 7×32 TC – Tinned Copper 7×0.20 mm
Conductor Count: 4
Total Number of Pairs: 2
Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE – Polyethylene 1.02 mm 0.05 mm
Color Chart
Number Color
Pair 1 t/m 2 Red & Black
Inner Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Tape Bi-Laminate (Alum+Poly) 100% Stranded tinned copper 24 7×0.20 mm Under shielding foil
Table Notes: Aluminum inside
Inner Jacket
Material Nominal Diameter
LSZH – Low Smoke Zero Halogen (Flame Retardant) 2.86 mm
Table Notes: Jacket single element, elements are numbered 1 – 2
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) 100% TC – Tinned Copper 7xAWG26 7×0.40 mm
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance Nominal Wall Thickness
LSZH – Low Smoke Zero Halogen (Flame Retardant) 7.65 mm 0.40 mm 0.90 mm

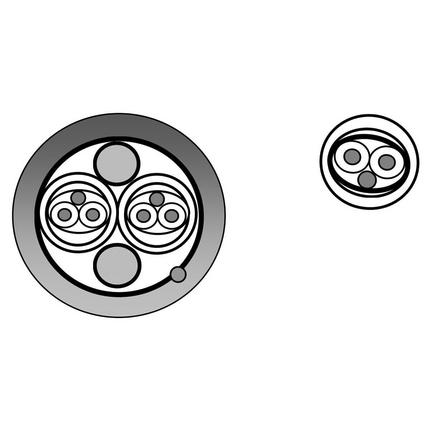

Construction and Dimensions

Cabling
Description
2 fillers + 2 pairs
Min Elongation at Breakof Jacket: 125 %
Min Tensile Strength of Jacket: 9 MPa

Electrical Characteristics

Conductor DCR
Max. Conductor DCR Nominal Inner Shield DCR
88.5 Ohm/km 52 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Shield
92 pF/m 180 pF/m
Inductance
Nominal Inductance
0.75 µH/m

Temperature Range

Other Temp Range: -30 to +70 °C

Mechanical Characteristics

Max. Pull Tension: 246 N
Min. Bend Radius During Installation: 76.5 mm
Min. Bend Radius During Operation: 115 mm

Standards

CPR Euroclass: Dca-s2,d1,a1
CENELEC Compliance: EN 50290-2-20

Applicable Environmental and Other Programs

Environmental Space: Indoor – Euroclass Dca

Flammability, LS0H, Toxicity Testing

IEC Flammability: IEC 60332-1-2, IEC 60332-3-24
IEC 60754-1 – Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
IEC 61034-2 – Smoke Density Min. Transmittance: 60%

Related Part Numbers

Variants
Item # Color Put-Up Type Length EAN
1509ECH.01500 Black Reel 500 m 8719605001641

History

Update and Revision: Revision Number: 0.184 Revision Date: 12-22-2023
